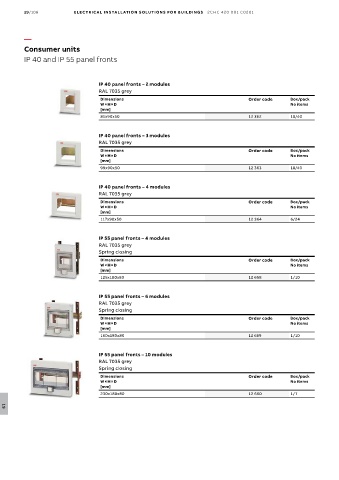

19/108 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Consumer units
IP 40 and IP 55 panel fronts

IP 40 panel fronts – 2 modules
RAL 7035 grey
Dimensions Order code Box/pack
W × H × D No items
[mm]
81x90x50 12 362 10/40

IP 40 panel fronts – 3 modules
RAL 7035 grey
Dimensions Order code Box/pack
W × H × D No items
[mm]
99x90x50 12 363 10/40

IP 40 panel fronts – 4 modules
RAL 7035 grey
Dimensions Order code Box/pack
W × H × D No items
[mm]
117x90x50 12 364 6/24

IP 55 panel fronts – 4 modules
RAL 7035 grey
Spring closing
Dimensions Order code Box/pack
W × H × D No items
[mm]
125x180x80 12 658 1/10

IP 55 panel fronts – 6 modules
RAL 7035 grey
Spring closing
Dimensions Order code Box/pack
W × H × D No items
[mm]
160x180x80 12 659 1/10

IP 55 panel fronts – 10 modules
RAL 7035 grey
Spring closing
Dimensions Order code Box/pack
W × H × D No items
[mm]
230x180x80 12 660 1/7
