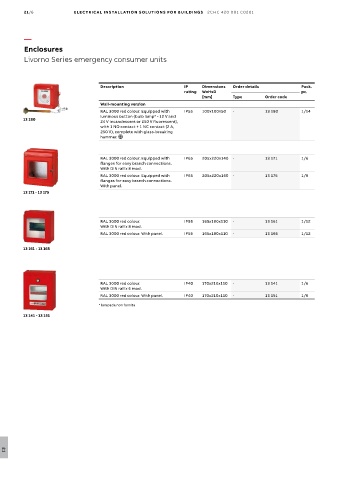

21/6 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Enclosures
Livorno Series emergency consumer units

Description IP Dimensions Order details Pack.
rating WxHxD pc.
[mm] Type Order code
Wall-mounting version
RAL 3000 red colour. Equipped with IP55 100x100x50 - 13 180 1/14
luminous button (bulb lamp* - 12 V and
13 180
24 V incandescent or 250 V fluorescent),
with 1 NO contact + 1 NC contact (2 A,
250 V), complete with glass-breaking
hammer.

RAL 3000 red colour. Equipped with IP65 205x220x140 - 13 171 1/6
flanges for easy branch connections.
With DIN rail x 8 mod.
RAL 3000 red colour. Equipped with IP65 205x220x140 - 13 175 1/6
flanges for easy branch connections.
With panel.
13 171 - 13 175

RAL 3000 red colour. IP55 165x180x110 - 13 161 1/12
With DIN rail x 8 mod.
RAL 3000 red colour. With panel. IP55 165x180x110 - 13 165 1/12

13 161 - 13 165

RAL 3000 red colour. IP40 170x210x110 - 13 141 1/6
With DIN rail x 6 mod.
RAL 3000 red colour. With panel. IP40 170x210x110 - 13 151 1/6
* lampada non fornita

13 141 - 13 151
