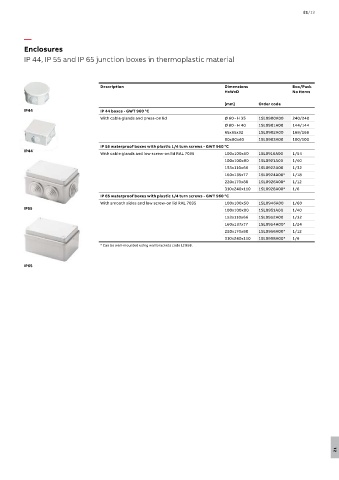

Page 2887 - Din prodcuts 2020

21/13

—
Enclosures
IP 44, IP 55 and IP 65 junction boxes in thermoplastic material

Description Dimensions Box/Pack
HxWxD No items
[mm] Order code
IP44 IP 44 boxes - GWT 960 °C
With cable glands and press-on lid Ø 60 - H 35 1SL0900A00 240/240
Ø 80 - H 40 1SL0901A00 144/144
65x65x32 1SL0902A00 168/168
80x80x40 1SL0903A00 100/100
IP 55 waterproof boxes with plastic 1/4 turn screws - GWT 960 °C
IP44
With cable glands and low screw-on lid RAL 7035 100x100x50 1SL0916A00 1/54
100x100x80 1SL0921A00 1/40
153x110x66 1SL0922A00 1/32
160x135x77 1SL0924A00* 1/18
220x170x80 1SL0926A00* 1/12
310x240x110 1SL0928A00* 1/6
IP 65 waterproof boxes with plastic 1/4 turn screws - GWT 960 °C
With smooth sides and low screw-on lid RAL 7035 100x100x50 1SL0946A00 1/60
IP55 100x100x80 1SL0951A00 1/40
153x110x66 1SL0952A00 1/32
160x137x77 1SL0954A00* 1/24
220x170x80 1SL0956A00* 1/12
310x240x110 1SL0958A00* 1/6
* Can be wall-mounted using wall brackets code 12 858.

IP65

21
