Quick product references

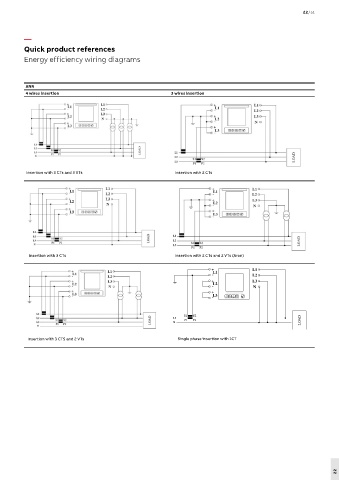

Energy efficiency wiring diagrams
ANR
4 wires insertion 3 wires insertion
Insertion with 3 CTs and 3 VTs Insertion with 2 CTs
Insertion with 3 CTs Insertion with 2 CTs and 2 VTs (Aron)
+ L1
- L1 L2
+ L3
- L2 N
+ ELECTRICAL MULTIFUNCTION ANALY ZER RECORDER
- L3 S E LEC T SE LEC T P. U P P. DO WN ENTE R
S1 S2
L1 P1 P2
N LOAD
Insertion with 3 CTS and 2 VTs Single phase insertion with 1CT
