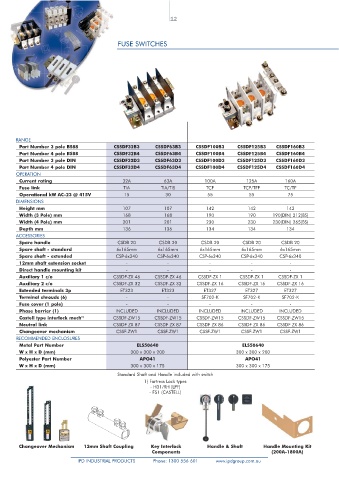

Page 14 - Panel_mount_Switches

12

FUSE SWITCHES

RANGE
Part Number 3 pole BS88 CSSDF32B3 CSSDF63B3 CSSDF100B3 CSSDF125B3 CSSDF160B3
Part Number 4 pole BS88 CSSDF32B4 CSSDF63B4 CSSDF100B4 CSSDF125B4 CSSDF160B4
Part Number 3 pole DIN CSSDF32D3 CSSDF63D3 CSSDF100D3 CSSDF125D3 CSSDF160D3
Part Number 4 pole DIN CSSDF32D4 CSSDF63D4 CSSDF100D4 CSSDF125D4 CSSDF160D4
OPERATION
Current rating 32A 63A 100A 125A 160A
Fuse link TIA TIA/TIS TCP TCP/TFP TC/TF
Operational kW AC-23 @ 415V 15 30 55 55 75
DIMENSIONS
Height mm 107 107 142 142 142
Width (3 Pole) mm 168 168 190 190 190(DIN) 212(BS)
Width (4 Pole) mm 201 201 230 230 230(DIN) 265(BS)
Depth mm 136 136 134 134 134
ACCESSORIES
Spare handle CSDB 20 CSDB 20 CSDB 20 CSDB 20 CSDB 20
Spare shaft - standard 6x165mm 6x165mm 6x165mm 6x165mm 6x165mm
Spare shaft - extended CSP-6x340 CSP-6x340 CSP-6x340 CSP-6x340 CSP-6x340
12mm shaft extension socket - - - - -
Direct handle mounting kit - - - - -
Auxiliary 1 c/o CSSDF-ZX 46 CSSDF-ZX 46 CSSDF-ZX 1 CSSDF-ZX 1 CSSDF-ZX 1
Auxiliary 2 c/o CSSDF-ZX 32 CSSDF-ZX 32 CSSDF-ZX 16 CSSDF-ZX 16 CSSDF-ZX 16
Extended terminals 3p ET323 ET323 ET327 ET327 ET327
Terminal shrouds (6) - - SF702-K SF702-K SF702-K
Fuse cover (1 pole) - - - - -
Phase barrier (1) INCLUDED INCLUDED INCLUDED INCLUDED INCLUDED
Castell type interlock mech 1) CSSDF-ZW15 CSSDF-ZW15 CSSDF-ZW15 CSSDF-ZW15 CSSDF-ZW15
Neutral link CSSDF ZX 87 CSSDF ZX 87 CSSDF ZX 86 CSSDF ZX 86 CSSDF ZX 86
Changeover mechanism CSSF-ZW1 CSSF-ZW1 CSSF-ZW1 CSSF-ZW1 CSSF-ZW1
RECOMMENDED ENCLOSURES
Metal Part Number ELS50640 ELS50640
W x H x D (mm) 300 x 300 x 200 300 x 300 x 200
Polyester Part Number APO41 APO41
W x H x D (mm) 300 x 300 x 175 300 x 300 x 175
Standard Shaft and Handle included with switch
1) Fortress Lock types
- H31/RH (LPF)
- FS1 (CASTELL)

Changeover Mechanism 12mm Shaft Coupling Key Interlock Handle & Shaft Handle Mounting Kit
Components (200A-1800A)
IPD INDUSTRIAL PRODUCTS Phone: 1300 556 601 www.ipdgroup.com.au
