9

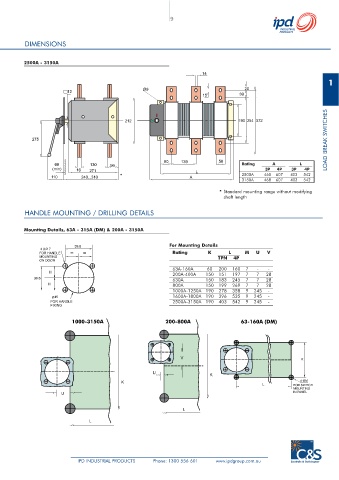

DIMENSIONS

2500A - 3150A

1

LOAD BREAK SWITCHES

*

* Standard mounting range without modifying
shaft length

HANDLE MOUNTING / DRILLING DETAILS

Mounting Details, 63A - 315A (DM) & 200A - 3150A

For Mounting Details
Rating K L M U V
TPN 4P
63A-160A 60 200 160 7 - -
200A-400A 150 151 197 7 7 28
630A 150 183 245 7 7 28
800A 150 199 269 7 7 28
1000A-1250A 190 278 358 9 245 -
1600A-1800A 190 396 535 9 245 -
2500A-3150A 190 403 542 9 245 -

IPD INDUSTRIAL PRODUCTS Phone: 1300 556 601 www.ipdgroup.com.au
