ABB | SACE Emax 2
Default

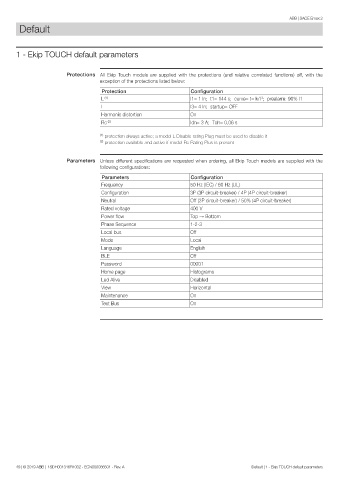

1 - Ekip TOUCH default parameters

Protections All Ekip Touch models are supplied with the protections (and relative correlated functions) off, with the
exception of the protections listed below:
Protection Configuration
L (1) I1= 1 In; t1= 144 s; curve= t= k/I ; prealarm: 90% I1
2
I I3= 4 In; startup= OFF
Harmonic distortion On
Rc (2) Idn= 3 A; Tdn= 0,06 s

(1) protection always active; a model L Disable rating Plug must be used to disable it
(2) protection available and active if model Rc Rating Plus is present

Parameters Unless different specifications are requested when ordering, all Ekip Touch models are supplied with the
following configurations:
Parameters Configuration
Frequency 50 Hz (IEC) / 60 Hz (UL)
Configuration 3P (3P circuit-breaker) / 4P (4P circuit-breaker)
Neutral Off (3P circuit-breaker) / 50% (4P circuit-breaker)
Rated voltage 400 V
Power flow Top → Bottom
Phase Sequence 1-2-3
Local bus Off
Mode Local
Language English
BLE Off
Password 00001
Home page Histograms
Led Alive Disabled
View Horizontal
Maintenance On
Test Bus On

49 | © 2019 ABB | 1SDH001316R1002 - ECN000086501 - Rev. A Default | 1 - Ekip TOUCH default parameters
