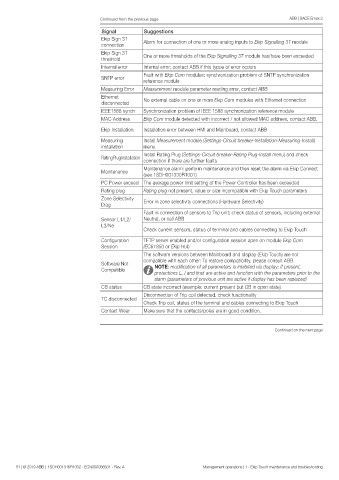

Continued from the previous page ABB | SACE Emax 2
Signal Suggestions
Ekip Sign 3T
connection Alarm for connection of one or more analog inputs to Ekip Signalling 3T module
Ekip Sign 3T
threshold One or more thresholds of the Ekip Signalling 3T module has/have been exceeded
Internal error Internal error; contact ABB if this typoe of error occurs
Fault with Ekip Com modules: synchronization problem of SNTP synchronization
SNTP error
reference module
Measuring Error Measurement module parameter reading error, contact ABB
Ethernet
disconnected No external cable on one or more Ekip Com modules with Ethernet connection
IEEE1588 synch Synchronization problem of IEEE 1588 synchronization reference module
MAC Address Ekip Com module detected with incorrect / not allowed MAC address, contact ABB.

Ekip Installation Installation error between HMI and Mainboard, contact ABB
Measuring Install Measurement module (Settings-Circuit breaker-Installation-Measuring-Install)
installation menu
Install Rating Plug (Settings-Circuit breaker-Rating Plug-Install menu) and check
RatingPlugInstallation
connection if there are further faults
Maintenance alarm: perform maintenance and then reset the alarm via Ekip Connect
Maintenance
(see 1SDH001330R1001)
PC Power exceed The average power limit setting of the Power Controller has been exceeded
Rating plug Rating plug not present, value or size incompatible with Ekip Touch parameters
Zone Selectivity
Diag Error in zone selectivity connections (Hardware Selectivity)
Fault in connection of sensors to Trip unit; check status of sensors, including external
Sensor L1/L2/ Neutral, or call ABB
L3/Ne
Check current sensors, status of terminal and cables connecting to Ekip Touch
Configuration TFTP server enabled and/or configuration session open on module Ekip Com
Session IEC61850 or Ekip Hub
The software versions between Mainboard and display (Ekip Touch) are not
compatible with each other: To restore compatibility, please consult ABB.
Software Not NOTE: modification of all parameters is inhibited via display; if present,
Compatible
protections L, I and Iinst are active and function with the parameters prior to the
alarm (parameters of previous unit are active if display has been replaced)
CB status CB state incorrect (esample: current present but CB in open state)
Disconnection of Trip coil detected, check functionality
TC disconnected
Check Trip coil, status of the terminal and cables connecting to Ekip Touch
Contact Wear Make sure that the contacts/poles are in good condition.
