Page 347 - SACE Tmax XT - Technical Catalogue

WIRING DIAGR AMS 3/17

—

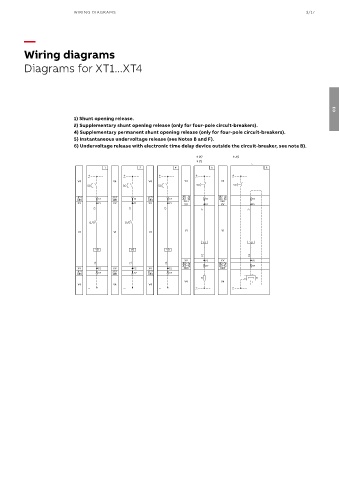

Wiring diagrams

Diagrams for XT1...XT4

03
1) Shunt opening release.
2) Supplementary shunt opening release (only for four-pole circuit-breakers).
4) Supplementary permanent shunt opening release (only for four-pole circuit-breakers).
5) Instantaneous undervoltage release (see Notes B and F).
6) Undervoltage release with electronic time delay device outside the circuit-breaker, see note B).
