3/22 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS
—

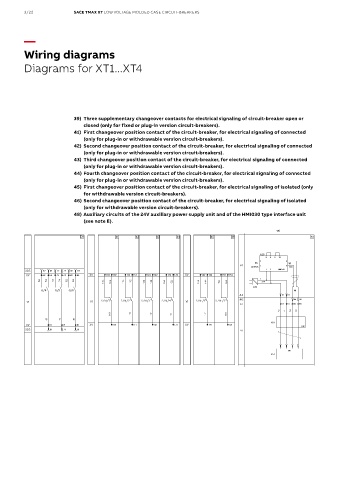

Wiring diagrams
Diagrams for XT1...XT4
39) Three supplementary changeover contacts for electrical signaling of circuit-breaker open or
closed (only for fixed or plug-in version circuit-breakers).
41) First changeover position contact of the circuit-breaker, for electrical signaling of connected
(only for plug-in or withdrawable version circuit-breakers).
42) Second changeover position contact of the circuit-breaker, for electrical signaling of connected
(only for plug-in or withdrawable version circuit-breakers).
43) Third changeover position contact of the circuit-breaker, for electrical signaling of connected
(only for plug-in or withdrawable version circuit-breakers).
44) Fourth changeover position contact of the circuit-breaker, for electrical signaling of connected
(only for plug-in or withdrawable version circuit-breakers).
45) First changeover position contact of the circuit-breaker, for electrical signaling of isolated (only
for withdrawable version circuit-breakers).
46) Second changeover position contact of the circuit-breaker, for electrical signaling of isolated
(only for withdrawable version circuit-breakers).
48) Auxiliary circuits of the 24V auxiliary power supply unit and of the HMI030 type interface unit
(see note E).
104 102 114 112 124 122 134 132 142 144 152 154
104 102 114 112 124 122 134 132 142 144 152 154
101 111 121 131 141 151
101 111 121 131 141 151
