Page 367 - SACE Tmax XT - Technical Catalogue
P. 367
WIRING DIAGR AMS 3/37
03

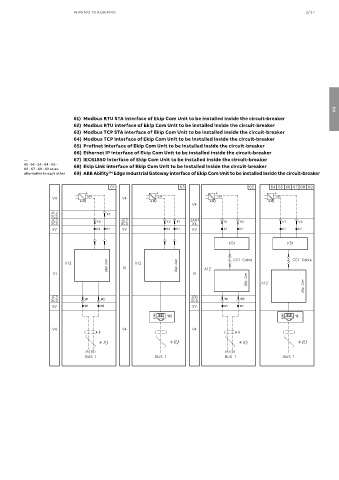

61) Modbus RTU STA interface of Ekip Com Unit to be installed inside the circuit-breaker
62) Modbus RTU interface of Ekip Com Unit to be installed inside the circuit-breaker
63) Modbus TCP STA interface of Ekip Com Unit to be installed inside the circuit-breaker
64) Modbus TCP interface of Ekip Com Unit to be installed inside the circuit-breaker
65) Profinet interface of Ekip Com Unit to be installed inside the circuit-breaker
66) Ethernet IP interface of Ekip Com Unit to be installed inside the circuit-breaker
— 67) IEC61850 interface of Ekip Com Unit to be installed inside the circuit-breaker
61 - 62 - 63 - 64 - 65 - 68) Ekip Link interface of Ekip Com Unit to be installed inside the circuit-breaker
66 - 67 - 68 - 69 as an
alternative to each other 69) ABB Ability™ Edge Industrial Gateway interface of Ekip Com Unit to be installed inside the circuit-breaker
