3/32 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

Wiring diagrams

Diagrams for XT1...XT4

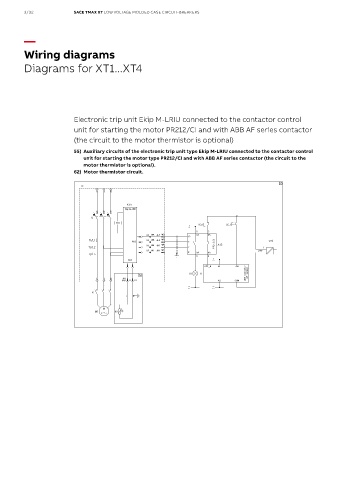

Electronic trip unit Ekip M-LRIU connected to the contactor control

unit for starting the motor PR212/CI and with ABB AF series contactor
(the circuit to the motor thermistor is optional)
55) Auxiliary circuits of the electronic trip unit type Ekip M-LRIU connected to the contactor control
unit for starting the motor type PR212/CI and with ABB AF series contactor (the circuit to the
motor thermistor is optional).
62) Motor thermistor circuit.
