3/46 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

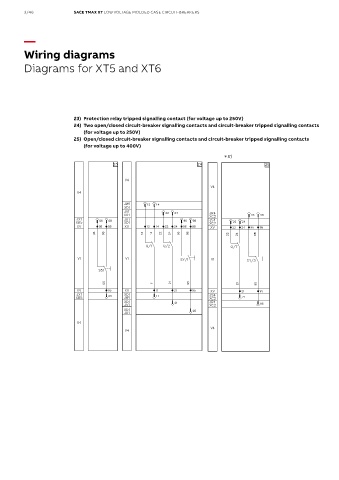

Wiring diagrams

Diagrams for XT5 and XT6

23) Protection relay tripped signalling contact (for voltage up to 250V)
24) Two open/closed circuit-breaker signalling contacts and circuit-breaker tripped signalling contacts
(for voltage up to 250V)
25) Open/closed circuit-breaker signalling contacts and circuit-breaker tripped signalling contacts
(for voltage up to 400V)

56 58
92 94
92 94 56 58
92 94 58

91 55
91 55
91
55
