WIRING DIAGR AMS 3/47
03

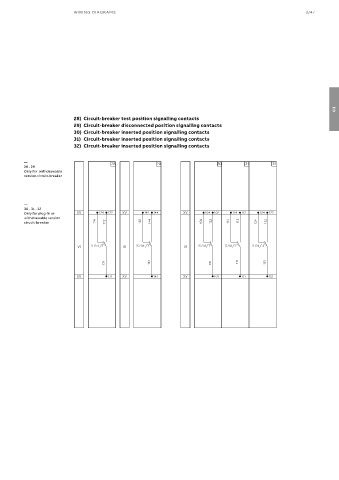

28) Circuit-breaker test position signalling contacts
29) Circuit-breaker disconnected position signalling contacts
30) Circuit-breaker inserted position signalling contacts
31) Circuit-breaker inserted position signalling contacts
32) Circuit-breaker inserted position signalling contacts
—
28 - 29
Only for withdrawable
version circuit-breaker
—
30 - 31 - 32
Only for plug-in or
withdrawable version
circuit-breaker
