3/54             SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

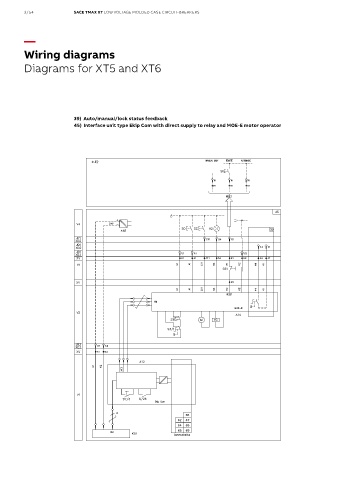

          Wiring diagrams


          Diagrams for XT5 and XT6









                           39)  Auto/manual/lock status feedback
                           45)  Interface unit type Ekip Com with direct supply to relay and MOE-E motor operator
