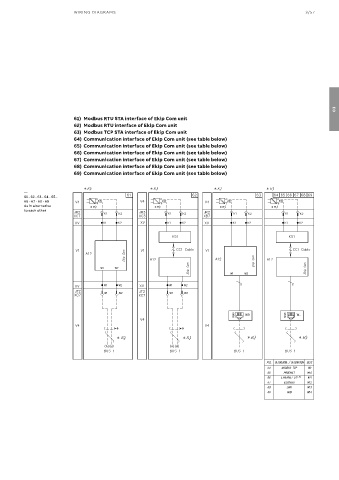

WIRING DIAGR AMS 3/57

03
61) Modbus RTU STA interface of Ekip Com unit
62) Modbus RTU interface of Ekip Com unit
63) Modbus TCP STA interface of Ekip Com unit
64) Communication interface of Ekip Com unit (see table below)
65) Communication interface of Ekip Com unit (see table below)
66) Communication interface of Ekip Com unit (see table below)
67) Communication interface of Ekip Com unit (see table below)
68) Communication interface of Ekip Com unit (see table below)
69) Communication interface of Ekip Com unit (see table below)

—
61 - 62 - 63 - 64 - 65 -
66 - 67 - 68 - 69
As in alternative
to each other
