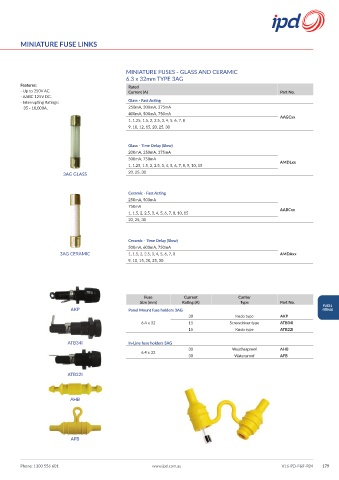

MINIATURE FUSE LINKS

MINIATURE FUSES - GLASS AND CERAMIC
6.3 x 32mm TYPE 3AG
Features: Rated
- Up to 250V AC. Current (A) Part No.
- AABC 125V DC.
- Interrupting Ratings: Glass - Fast Acting
35 - 10,000A. 250mA, 300mA, 375mA
400mA, 500mA, 750mA AAGCxx
1, 1.25, 1.5, 2, 2.5, 3, 4, 5, 6, 7, 8
9, 10, 12, 15, 20, 25, 30

Glass - Time Delay (Slow)
200mA, 250mA, 375mA
500mA, 750mA AMDLxx
1, 1.25, 1.5, 2, 2.5, 3, 4, 5, 6, 7, 8, 9, 10, 15
3AG GLASS 20, 25, 30

Ceramic - Fast Acting
250mA, 500mA
750mA AABCxx
1, 1.5, 2, 2.5, 3, 4, 5, 6, 7, 8, 10, 15
20, 25, 30

Ceramic - Time Delay (Slow)
500mA, 600mA, 750mA
3AG CERAMIC 1, 1.5, 2, 2.5, 3, 4, 5, 6, 7, 8 AMDAxx
9, 10, 15, 20, 25, 30

Fuse Current Carrier
Size (mm) Rating (A) Type Part No.
FUSES &
AKP Panel Mount fuse holders 3AG FITTINGS
30 Knob type AKP
6.4 x 32 15 Screwdriver type ATB34I
15 Knob type ATB22I
ATB34I In-Line fuse holders 3AG
30 Weatherproof AHB
6.4 x 32
30 Waterproof AFB

ATB22I

AHB

AFB
