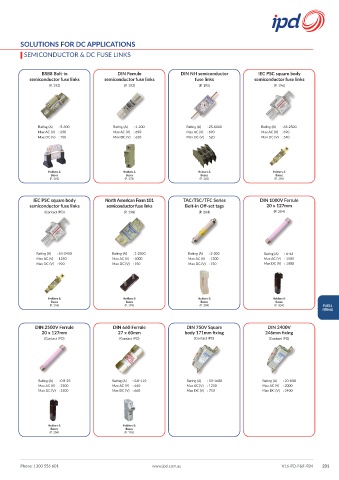

SOLUTIONS FOR DC APPLICATIONS
SEMICONDUCTOR & DC FUSE LINKS

BS88 Bolt-in DIN Ferrule DIN NH semiconductor IEC PSC square body
semiconductor fuse links semiconductor fuse links fuse links semiconductor fuse links
(P. 192) (P. 192) (P. 195) (P. 196)

Rating (A) : 5-800 Rating (A) : 1-200 Rating (A) : 25-1000 Rating (A) : 63-2500
Max AC (V) : 690 Max AC (V) : 690 Max AC (V) : 690 Max AC (V) : 690
Max DC (V) : 700 Max DC (V) : 620 Max DC (V) : 520 Max DC (V) : 540

Holders & Holders & Holders & Holders &
Bases Bases Bases Bases
(P. 192) (P. 176) (P. 182) (P. 196)

IEC PSC square body North American Form 101 TAC/TSC/TFC Series DIN 1000V Ferrule
semiconductor fuse links semiconductor fuse links Bolt-in Off-set tags 20 x 127mm
(Contact IPD) (P. 198) (P. 204) (P. 204)

Rating (A) : 63-1400 Rating (A) : 1-2500 Rating (A) : 2-200 Rating (A) : 6-63
Max AC (V) : 1250 Max AC (V) : 1000 Max AC (V) : 1200 Max AC (V) : 1500
Max DC (V) : 920 Max DC (V) : 750 Max DC (V) : 750 Max DC (V) : 1000

Holders & Holders & Holders & Holders &
Bases Bases Bases Bases
(P. 196) (P. 199) (P. 204) (P. 204) FUSES &
FITTINGS

DIN 2500V Ferrule DIN 660 Ferrule DIN 750V Square DIN 2400V
20 x 127mm 27 x 60mm body 171mm fixing 246mm fixing
(Contact IPD) (Contact IPD) (Contact IPD) (Contact IPD)

Rating (A) : 0.8-25 Rating (A) : 0.8-110 Rating (A) : 50-1600 Rating (A) : 20-800
Max AC (V) : 2500 Max AC (V) : 660 Max AC (V) : 1250 Max AC (V) : 2000
Max DC (V) : 1500 Max DC (V) : 660 Max DC (V) : 750 Max DC (V) : 2400

Holders & Holders &
Bases Bases
(P. 204) (P. 176)
