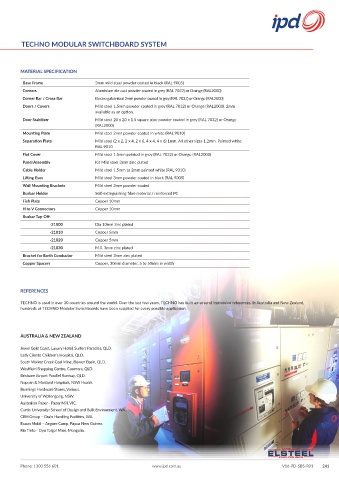

TECHNO MODULAR SWITCHBOARD SYSTEM

MATERIAL SPECIFICATION

Base Frame 2mm mild steel powder coated in black (RAL 9005)
Corners Aluminium die cast powder coated in grey (RAL 7032) or Orange (RAL2000)
Corner Bar / Cross Bar Electro galvanised 2mm powder coated in grey (RAL 7032) or Orange (RAL2000)
Doors / Covers Mild steel 1.5mm powder coated in grey (RAL 7032) or Orange (RAL2000). 2mm
available as an option.
Door Stabiliser Mild steel 20 x 20 x 1.5 square pipe powder coated in grey (RAL 7032) or Orange
(RAL2000)
Mounting Plate Mild steel 2mm powder coated in white (RAL 9010)
Separation Plate Mild steel (2 x 2, 2 x 4, 2 x 6, 4 x 4, 4 x 6) 1mm. All other sizes 1.2mm. Painted white
RAL 9010
Flat Cover Mild steel 1.5mm painted in grey (RAL 7032) or Orange (RAL2000)
Panel Assembly Kit Mild steel 3mm zinc plated
Cable Holder Mild steel 1.5mm to 2mm painted white (RAL 9010)
Lifting Eyes Mild steel 3mm powder coated in black (RAL 9005)
Wall Mounting Brackets Mild steel 3mm powder coated
Busbar Holder Self-extinguishing fibre material / reinforced PC
Fish Plate Copper 10mm
H to V Connectors Copper 10mm
Busbar Tap-Off:
-21000 Dia 10mm zinc plated
-21010 Copper 5mm
-21020 Copper 5mm
-21030 M.S. 3mm zinc plated
Bracket for Earth Conductor Mild steel 3mm zinc plated
Copper Spacers Copper, 30mm diameter, 5 to 50mm in width
