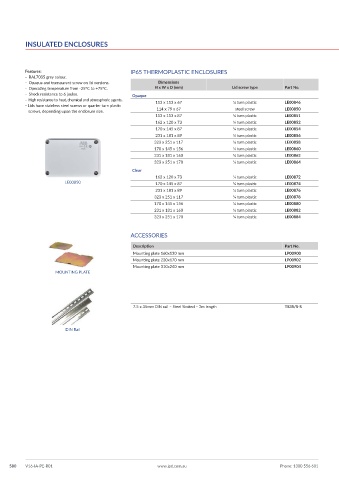

Page 588 - V16 Catalogue Final

INSULATED ENCLOSURES

Features: IP65 THERMOPLASTIC ENCLOSURES
- RAL7035 grey colour.
- Opaque and transparent screw on lid versions. Dimensions
- Operating temperature from -25°C to +75°C. H x W x D (mm) Lid screw type Part No.
- Shock resistance to 6 joules. Opaque
- High resistance to heat, chemical and atmospheric agents. 113 x 113 x 67 ¼ turn plastic LE00846
- Lids have stainless steel screws or quarter turn plastic
screws, depending upon the enclosure size. 114 x 79 x 67 steel screw LE00850
113 x 113 x 87 ¼ turn plastic LE00851
162 x 120 x 73 ¼ turn plastic LE00852
170 x 145 x 87 ¼ turn plastic LE00854
231 x 181 x 89 ¼ turn plastic LE00856
323 x 251 x 117 ¼ turn plastic LE00858
170 x 145 x 156 ¼ turn plastic LE00860
231 x 181 x 160 ¼ turn plastic LE00862
323 x 251 x 170 ¼ turn plastic LE00864
Clear
162 x 120 x 73 ¼ turn plastic LE00872
LE00850 170 x 145 x 87 ¼ turn plastic LE00874
231 x 181 x 89 ¼ turn plastic LE00876
323 x 251 x 117 ¼ turn plastic LE00878
170 x 145 x 156 ¼ turn plastic LE00880
231 x 181 x 160 ¼ turn plastic LE00882
323 x 251 x 170 ¼ turn plastic LE00884

ACCESSORIES
Description Part No.
Mounting plate 160x130 mm LP00900
Mounting plate 220x170 mm LP00902
Mounting plate 310x240 mm LP00904
MOUNTING PLATE

7.5 x 35mm DIN rail – Steel Slotted – 2m length TS35/S-S

DIN Rail
