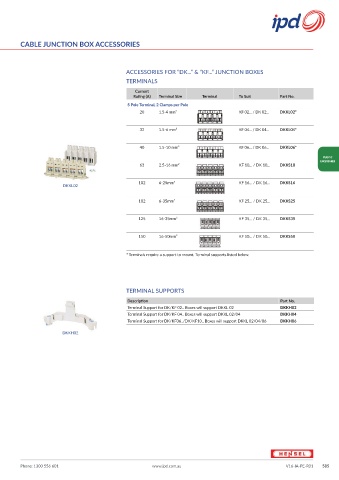

CABLE JUNCTION BOX ACCESSORIES

ACCESSORIES FOR “DK...” & “KF...” JUNCTION BOXES
TERMINALS
Current
Rating (A) Terminal Size Terminal To Suit Part No.
5 Pole Terminal, 2 Clamps per Pole
20 1.5-4 mm² KF 02... / DK 02... DKKL02*

32 1.5-6 mm² KF 04... / DK 04... DKKL04*

40 1.5-10 mm² KF 06... / DK 06... DKKL06*
PLASTIC
ENCLOSURES
63 2.5-16 mm² KF 10... / DK 10... DKKS10

102 6-25mm² KF 16... / DK 16... DKKS16
DKKL02

102 6-35mm² KF 25... / DK 25... DKKS25

125 16-35mm² KF 35... / DK 35... DKKS35

150 16-50mm² KF 50... / DK 50... DKKS50

* Terminals require a support to mount. Terminal supports listed below.

TERMINAL SUPPORTS
Description Part No.
Terminal Support for DK/KF 02.. Boxes will support DKKL 02 DKKH02
Terminal Support for DK/KF 04.. Boxes will support DKKL 02/04 DKKH04
Terminal Support for DK/KF06../DK/KF10.. Boxes will support DKKL 02/04/06 DKKH06
DKKH02
