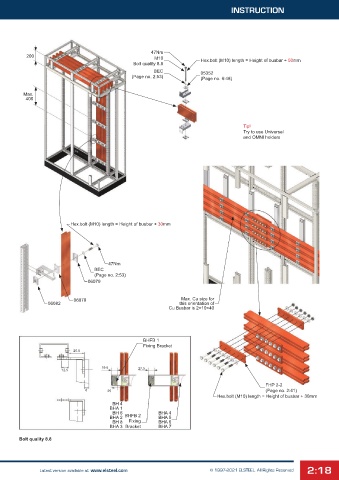

INSTRUCTION

47Nm
200
M10 Hex.bolt (M10) length = Height of busbar + 50mm
Bolt quality 8.8
BEC 05352
(Page no. 2:53) (Page no. 6:48)

Max.
400

Tip!
Try to use Universal
and OMNI holders

Hex.bolt (M10) length = Height of busbar + 30mm

47Nm
BEC
(Page no. 2:53)
06079

06079 Max. Cu size for
06082 this orientation of
Cu Busbar is 2×10×40

BHFB 1
Fixing Bracket
26.5

19.5 27.5
12.5

FHP 2-2
8 25 (Page no. 2:41)
Hex.bolt (M10) length = Height of busbar + 30mm
BH 4
BHA 1
BH 6 BHA 4
BHA 2 BHFB 2 BHA 5
BH 8 Fixing BHA 6
BHA 3 Bracket BHA 7

Bolt quality 8.8
