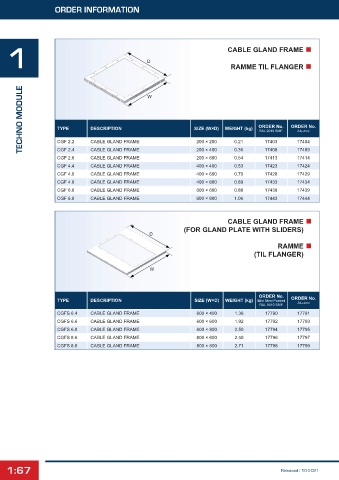

ORDER INFORMATION

1 D CABLE GLAND FRAME

RAMME TIL FLANGER

TECHNO MODULE TYPE DESCRIPTION W SIZE (W×D) WEIGHT (kg) ORDER No. ORDER No.

Alu-zinc
RAL 9010 SMF.
CGF 2.2
0.36
CABLE GLAND FRAME
200 × 400
17409
CGF 2.4
17408
200 × 600
CABLE GLAND FRAME
17414
17413
0.54
CGF 2.6 CABLE GLAND FRAME 200 × 200 0.21 17403 17404
CGF 4.4 CABLE GLAND FRAME 400 × 400 0.53 17423 17424
CGF 4.6 CABLE GLAND FRAME 400 × 600 0.70 17428 17429
CGF 4.8 CABLE GLAND FRAME 400 × 800 0.89 17433 17434
CGF 6.6 CABLE GLAND FRAME 600 × 600 0.88 17438 17439
CGF 6.8 CABLE GLAND FRAME 600 × 800 1.06 17443 17444
CABLE GLAND FRAME
(FOR GLAND PLATE WITH SLIDERS)
D
RAMME
(TIL FLANGER)

W

ORDER No.
TYPE DESCRIPTION SIZE (W×D) WEIGHT (kg) Mild Steel Painted ORDER No.
Alu-zinc
RAL 9010 SMF.
CGFS 6.4 CABLE GLAND FRAME 600 × 400 1.36 17790 17791
CGFS 6.6 CABLE GLAND FRAME 600 × 600 1.92 17792 17793
CGFS 6.8 CABLE GLAND FRAME 600 × 800 2.50 17794 17795
CGFS 8.6 CABLE GLAND FRAME 800 × 600 2.50 17796 17797
CGFS 8.8 CABLE GLAND FRAME 800 × 800 2.71 17798 17799

2;78 Released : 10-2021
