insulating pipe with HVI conductor
in the hazardous area

®
®
insulating pipe with HVI conductor HVI conductor
at a cell site mast
isolated air-termination
rod with tripod support distance holder with twin screw cleat distance holder with
and fixing plate (also suitable for flat pipe clamp for fixation
structures) at round components
telescopic lightning Part No. 106 115 Part No. 106 245
DEHNiso protection mast
distance holder
isolated air-termination rod
with concrete base
DEHNiso Combi

=

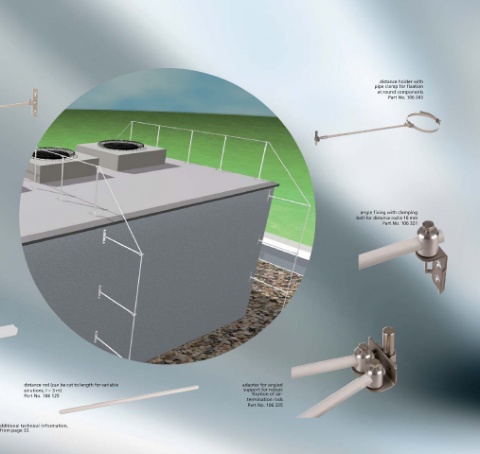

DEHNiso distance holder –

versatile, durable and elegant.

pipe clamp with fixing socket
The DEHNiso distance holder system is a practice-oriented and required, distance holders can be assembled of 3 m rods and for distance rod ø 16 mm
versatile component programme. This system offers easy and the relevant individual components. Even though projects Part No. 106 352
cost-effective solutions for almost every application. The distance requirements are versatile, installation vehicles have only limited angle fixing with clamping
holder system can be used as static support for isolated loading capacities. Therefore, DEHN + SÖHNE does not only bolt for distance rod ø 16 mm
air-termination rods (diameter 16 mm). Provided that the offer set solutions but also a modular DEHNiso system. Part No. 106 321
separation distance s (material factor km = 0.7) is observed, the
installation of ring conductors is also possible. Thus, e.g. an
air-termination rod (diameter 16 mm) can be directly attached
to the structure to be protected via distance holders if the
separation distance is maintained. The relevant down-conductor
can also be installed directly at the structure to be protected by
means of distance holders. Standard lengths up to 1 m with
pre-mounted fixing elements and pre-mounted conductor
holders and/or rod holders are available. If special lengths are

distance holder with
rod holder
Part No. 106 178

distance rod (can be cut to length for variable adapter for angled
solutions, l = 3 m) support for robust
Part No. 106 125 fixation of air-
termination rods
Part No. 106 325

For the entire DEHNiso Combi distance holder programme and additional technical information,
please refer to the Lightning Protection main catalogue 2007 as from page 33.
