insulating pipe with HVI conductor
in the hazardous area

®
HVI conductor
®
insulating pipe with HVI conductor
a cell site mast
isolated air-termination
rod with
tripod support

telescopic lightning
protection mast
DEHNiso distance holder
isolated air-termination rod
with concrete base
DEHNiso Combi

=

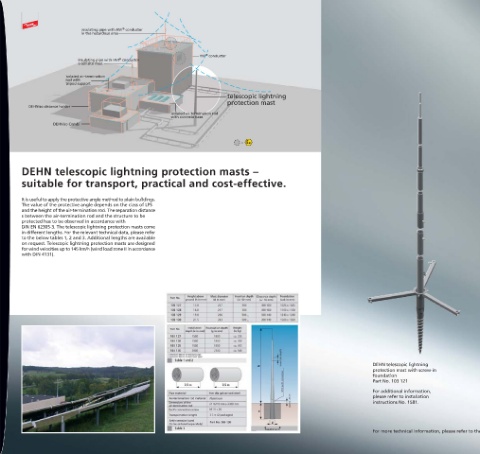

DEHN telescopic lightning protection masts –

suitable for transport, practical and cost-effective.

It is useful to apply the protective angle method to plain buildings.
The value of the protective angle depends on the class of LPS
and the height of the air-termination rod. The separation distance
s between the air-termination rod and the structure to be
protected has to be observed in accordance with
DIN EN 62305-3. The telescopic lightning protection masts come
in different lengths. For the relevant technical data, please refer h
to the below tables 1, 2 and 3. Additional lengths are available
on request. Telescopic lightning protection masts are designed
for wind velocities up to 145 km/h (wind load zone II in accordance
with DIN 4131).

M10 earthing connection

Table 1 and 2
DEHN telescopic lightning DEHN telescopic lightning
protection mast with screw-in protection mast
foundation in a concrete base
e
Part No. 103 121
For additional information,
For additional information, please refer to installation
please refer to installation instructions No. 1574.
instructions No. 1581.
d

Table 3 foundation a x b foundation a x b
For more technical information, please refer to the Lightning Protection main catalogue 2007 as from page 24.
