insulating pipe with
®
HVI conductor air-termination tip
in the hazardous area Part No. 105 071

®
insulating pipe with HVI conductor
®
HVI conductor
at a cell site mast
isolated air-
termination rod
with tripod
support
isolated air-termination
DEHNiso rod with concrete base
distance holder
telescopic lightning protection mast
DEHNiso Combi

= isolated air-termination
rod with braces 6 - 8.5 m
Part No. 105 600

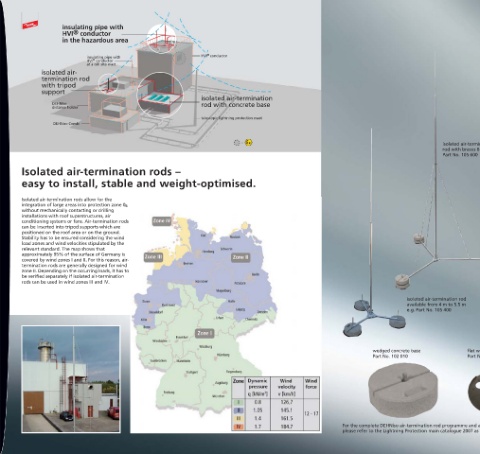

Isolated air-termination rods –

easy to install, stable and weight-optimised.

Isolated air-termination rods allow for the distance holder
integration of large areas into protection zone 0 B Part No. 106 228
without mechanically contacting or drilling
installations with roof superstructures, air
conditioning systems or fans. Air-termination rods
can be inserted into tripod supports which are
positioned on the roof area or on the ground.
Stability has to be ensured considering the wind
load zones and wind velocities stipulated by the
relevant standard. The map shows that
approximately 95% of the surface of Germany is
covered by wind zones I and II. For this reason, air- DEHNiso Combi insulating pipe
termination rods are generally designed for wind Part No. 105 300
zone II. Depending on the occurring loads, it has to
be verified separately if isolated air-termination
rods can be used in wind zones III and IV.

isolated air-termination rod
available from 4 m to 5.5 m
e.g. Part No. 105 400

wedged concrete base flat washer for concrete base
Part No. 102 010 Part No. 102 050

tripod support for
DEHNiso Combi insulating pipe
Part No. 105 200

For the complete DEHNiso air-termination rod programme and additional technical information,
please refer to the Lightning Protection main catalogue 2007 as from page 22 and to installation instructions 1436.
