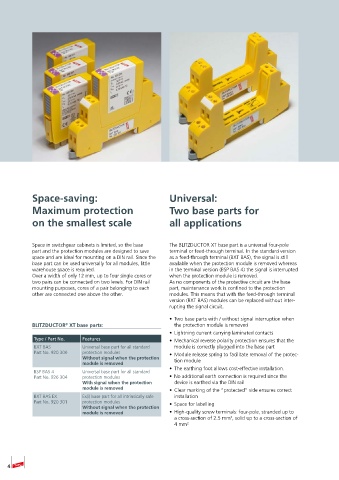

Page 4 - Blitzductor_XT

Space-saving: Universal:

Maximum protection Two base parts for

on the smallest scale all applications

Space in switchgear cabinets is limited, so the base The BLITZDUCTOR XT base part is a universal four-pole
part and the protection modules are designed to save terminal or feed-through terminal. In the standard version
space and are ideal for mounting on a DIN rail. Since the as a feed-through terminal (BXT BAS), the signal is still
base part can be used universally for all modules, little available when the protection module is removed whereas
warehouse space is required. in the terminal version (BSP BAS 4) the signal is interrupted
Over a width of only 12 mm, up to four single cores or when the protection module is removed.
two pairs can be connected on two levels. For DIN rail As no components of the protective circuit are the base
mounting purposes, cores of a pair belonging to each part, maintenance work is confined to the protection
other are connected one above the other. modules. This means that with the feed-through terminal
version (BXT BAS) modules can be replaced without inter-
rupting the signal circuit.

• Two base parts with / without signal interruption when
®
BLITZDUCTOR XT base parts: the protection module is removed
• Lightning current carrying laminated contacts
Type / Part No. Features • Mechanical reverse polarity protection ensures that the
BXT BAS Universal base part for all standard module is correctly plugged into the base part
Part No. 920 300 protection modules • Module release spring to facilitate removal of the protec-
Without signal when the protection tion module
module is removed
• The earthing foot allows cost-effective installation.
BSP BAS 4 Universal base part for all standard
Part No. 926 304 protection modules • No additional earth connection is required since the
With signal when the protection device is earthed via the DIN rail
module is removed • Clear marking of the “protected” side ensures correct
BXT BAS EX Ex(i) base part for all intrinsically safe installation
Part No. 920 301 protection modules • Space for labelling
Without signal when the protection
module is removed • High-quality screw terminals: four-pole, stranded up to
a cross-section of 2.5 mm , solid up to a cross-section of
2
4 mm 2
