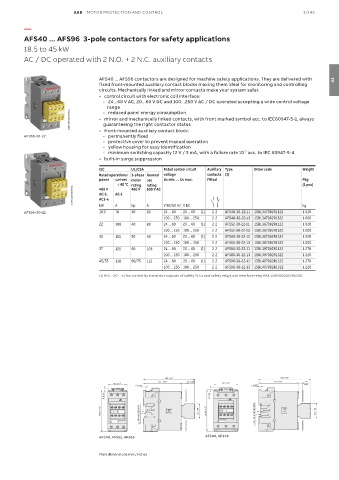

ABB MOTOR PROTECTION AND CONTROL 3/145

—

AFS40 ... AFS96 3-pole contactors for safety applications
18.5 to 45 kW
AC / DC operated with 2 N.O. + 2 N.C. auxiliary contacts

AFS40 ... AFS96 contactors are designed for machine safety applications. They are delivered with 03
fixed front-mounted auxiliary contact blocks making them ideal for monitoring and controlling
circuits. Mechanically linked and mirror contacts make your system safer.
• control circuit with electronic coil interface:
- 24...60 V AC, 20...60 V DC and 100...250 V AC / DC operated accepting a wide control voltage
range
1SBC101542V0014 • mirror and mechanically linked contacts, with front marked symbol acc. to IEC60947-5-1, always
- reduced panel energy consumption
guaranteeing the right contactor status
• front-mounted auxiliary contact block:
AFS65-30-22 - permanently fixed
- protective cover to prevent manual operation
- yellow housing for easy identification
-7
- minimum switching capacity 12 V / 3 mA, with a failure rate 10 acc. to IEC 60947-5-4
• built-in surge suppression
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts (1)
power current motor use Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C rating rating (1 pce)
1SBC101544V0014 AC-3, AC-1
600 V AC
480 V
400 V
AC3-e
kW A hp A V 50/60 Hz V DC kg
AFS96-30-22 18.5 70 30 60 24 ... 60 20 ... 60 (1) 2 2 AFS40-30-22-11 1SBL347082R1122 1.020
100 ... 250 100 ... 250 2 2 AFS40-30-22-13 1SBL347082R1322 1.000
22 100 40 80 24 ... 60 20 ... 60 (1) 2 2 AFS52-30-22-11 1SBL367082R1122 1.020
100 ... 250 100 ... 250 2 2 AFS52-30-22-13 1SBL367082R1322 1.000
30 105 50 90 24 ... 60 20 ... 60 (1) 2 2 AFS65-30-22-11 1SBL387082R1122 1.020
100 ... 250 100 ... 250 2 2 AFS65-30-22-13 1SBL387082R1322 1.000
37 125 60 105 24 ... 60 20 ... 60 (1) 2 2 AFS80-30-22-11 1SBL397082R1122 1.270
100 ... 250 100 ... 250 2 2 AFS80-30-22-13 1SBL397082R1322 1.220
45/55 130 60/75 115 24 ... 60 20 ... 60 (1) 2 2 AFS96-30-22-11 1SBL407082R1122 1.270
100 ... 250 100 ... 250 2 2 AFS96-30-22-13 1SBL407082R1322 1.220
(1) AFS..-30-..-11 for control by transistor outputs of safety PLCs and safety relays use interface relay RA4 1SBN060100R1000.

144 5.67" 149 5.87"
111 4.37" 10 0.39" 116 4.57" 10
55 2.17" 70 2.76" 0.39"
7 0.28" 7 0.28"
6 0.24" 6 0.24"
119.5 4.70" 35 mm EN/IEC 60715 5.5 0.22" 43 1.69" 119.5 4.70" 35 x 15 mm EN/IEC 60715 5.5 0.22"" 2 43 1.69"
5.5
0.2

AFS40, AFS52, AFS65 AFS80, AFS96

Main dimensions mm, inches
