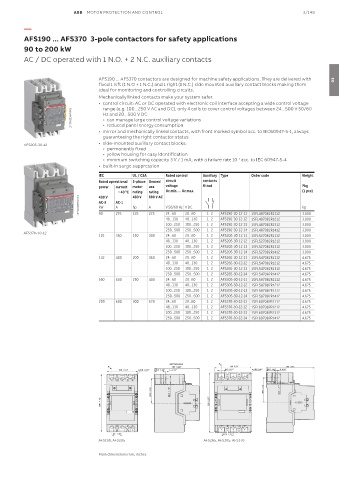

Page 225 - ABB_Motor _Protection_and_Control_catalogue_20221216

ABB MOTOR PROTECTION AND CONTROL 3/149

—

AFS190 ... AFS370 3-pole contactors for safety applications
90 to 200 kW
AC / DC operated with 1 N.O. + 2 N.C. auxiliary contacts

AFS190 ... AFS370 contactors are designed for machine safety applications. They are delivered with 03
fixed 1 left (1 N.O + 1 N.C.) and 1 right (1 N.C.) side mounted auxiliary contact blocks making them
ideal for monitoring and controlling circuits.
Mechanically linked contacts make your system safer.
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 coils to cover control voltages between 24...500 V 50/60
1SFC101238V0001 Hz and 20...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
• mirror and mechanically linked contacts, with front marked symbol acc. to IEC60947-5-1, always
guaranteeing the right contactor status
AFS205-30-12 • side-mounted auxiliary contact blocks:
- permanently fixed
- yellow housing for easy identification
- minimum switching capacity 3 V / 1 mA, with a failure rate 10 acc. to IEC 60947-5-4
-7
• built-in surge suppression
IEC UL / CSA Rated control Auxiliary Type Order code Weight
Rated operational 3-phase General circuit contacts
power current motor use voltage fitted Pkg
θ ≤ 40 °C rating rating Uc min. ... Uc max. (1 pce)
600 V AC
480 V
400 V
1SFC101235V0001 AC-3 AC-1 hp A V 50/60 Hz V DC kg
A
kW
275
24...60
90
275
125
AFS190-30-12-12
1SFL487082R1212
3.000
48...130 20...60 1 2 AFS190-30-12-11 1SFL487082R1112 3.000
48...130
1 2
100...250 100...250 1 2 AFS190-30-12-13 1SFL487082R1312 3.000
250...500 250...500 1 2 AFS190-30-12-14 1SFL487082R1412 3.000
AFS370-30-12
110 350 150 300 24...60 20...60 1 2 AFS205-30-12-11 1SFL527082R1112 3.000
48...130 48...130 1 2 AFS205-30-12-12 1SFL527082R1212 3.000
100...250 100...250 1 2 AFS205-30-12-13 1SFL527082R1312 3.000
250...500 250...500 1 2 AFS205-30-12-14 1SFL527082R1412 3.000
132 400 200 350 24...60 20...60 1 2 AFS265-30-12-11 1SFL547082R1112 4.675
48...130 48...130 1 2 AFS265-30-12-12 1SFL547082R1212 4.675
100...250 100...250 1 2 AFS265-30-12-13 1SFL547082R1312 4.675
250...500 250...500 1 2 AFS265-30-12-14 1SFL547082R1412 4.675
160 500 250 400 24...60 20...60 1 2 AFS305-30-12-11 1SFL587082R1112 4.675
48...130 48...130 1 2 AFS305-30-12-12 1SFL587082R1212 4.675
100...250 100...250 1 2 AFS305-30-12-13 1SFL587082R1312 4.675
250...500 250...500 1 2 AFS305-30-12-14 1SFL587082R1412 4.675
200 600 300 520 24...60 20...60 1 2 AFS370-30-12-11 1SFL607082R1112 4.675
48...130 48...130 1 2 AFS370-30-12-12 1SFL607082R1212 4.675
100...250 100...250 1 2 AFS370-30-12-13 1SFL607082R1312 4.675
250...500 250...500 1 2 AFS370-30-12-14 1SFL607082R1412 4.675
SECTION B-B A
B 152 5.98" 140 5.51" 180 7.09"
105 4.13" ø 8.5 0.33" 35.5 1.40" 5 0.20" 19.5 0.77" ø 10.5 0.41" 35.5 1.40" 5 0.20"

83.5 3.29" 29.5 1.16" 94.7 3.73" 33.4 1.31"
196 7.72" 225 8.86"

35 1.38" 43.75 1.72"
AFS190, AFS205 AFS265, AFS305, AFS370

Main dimensions mm, inches
