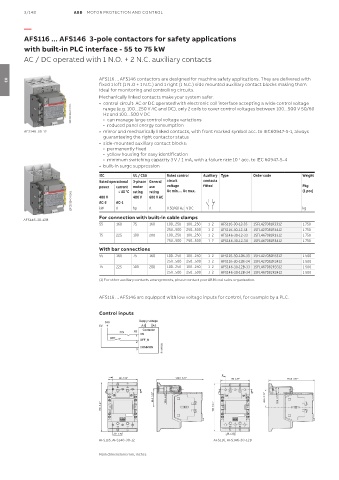

3/148 ABB MOTOR PROTECTION AND CONTROL

—

AFS116 ... AFS146 3-pole contactors for safety applications
with built-in PLC interface - 55 to 75 kW
AC / DC operated with 1 N.O. + 2 N.C. auxiliary contacts

AFS116 ... AFS146 contactors are designed for machine safety applications. They are delivered with
fixed 1 left (1 N.O + 1 N.C.) and 1 right (1 N.C.) side mounted auxiliary contact blocks making them
03
ideal for monitoring and controlling circuits.
Mechanically linked contacts make your system safer.
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
1SFC101242V0001 range (e.g. 100...250 V AC and DC), only 2 coils to cover control voltages between 100...500 V 50/60
Hz and 100...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
AFS146-30-12 • mirror and mechanically linked contacts, with front marked symbol acc. to IEC60947-5-1, always
guaranteeing the right contactor status
• side-mounted auxiliary contact blocks:
- permanently fixed
- yellow housing for easy identification
- minimum switching capacity 3 V / 1 mA, with a failure rate 10 acc. to IEC 60947-5-4
-7
• built-in surge suppression
IEC UL / CSA Rated control Auxiliary Type Order code Weight
Rated operational 3-phase General circuit contacts
power current motor use voltage fitted Pkg
Uc min. ... Uc max.
(1 pce)
θ ≤ 40 °C
rating
rating
1SFC101240V0001 400 V AC-1 480 V 600 V AC V 50/60 Hz V DC kg
AC-3
hp
kW
A
A
For connection with built-in cable clamps
AFS146-30-12B
55 160 75 160 100...250 100...250 1 2 AFS116-30-12-33 1SFL427081R3312 1.750
250...500 250...500 1 2 AFS116-30-12-34 1SFL427081R3412 1.750
75 225 100 200 100...250 100...250 1 2 AFS146-30-12-33 1SFL467081R3312 1.750
250...500 250...500 1 2 AFS146-30-12-34 1SFL467081R3412 1.750
With bar connections
55 160 75 160 100...250 100...250 1 2 AFS116-30-12B-33 1SFL427082R3312 1.500
250...500 250...500 1 2 AFS116-30-12B-34 1SFL427082R3412 1.500
75 225 100 200 100...250 100...250 1 2 AFS146-30-12B-33 1SFL467082R3312 1.500
250...500 250...500 1 2 AFS146-30-12B-34 1SFL467082R3412 1.500
(1) For other auxiliary contacts arrangements, please contact your ABB local sales organization.
AFS116 ... AFS146 are equipped with low voltage inputs for control, for example by a PLC.

Control inputs

E
90 3.54" 142.5 5.61" 90 3.54" 142.5 5.61"

D D D D
55.5 0.22" 19.5 4.96" 55.5 2.18" 19.5 0.77"
150 5.91" 150 5.91"

30 1.18" 30 1.18"
AFS116, AFS146-30-12 AFS116, AFS146-30-12B

Main dimensions mm, inches
