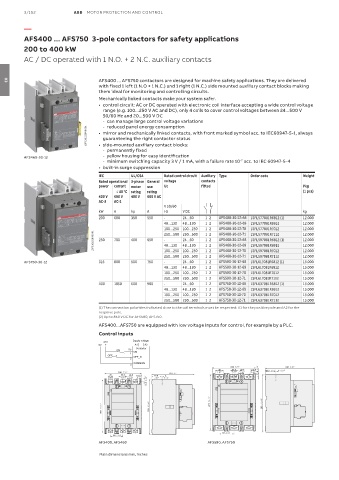

Page 228 - ABB_Motor _Protection_and_Control_catalogue_20221216

3/152 ABB MOTOR PROTECTION AND CONTROL

—

AFS400 ... AFS750 3-pole contactors for safety applications
200 to 400 kW
AC / DC operated with 1 N.O. + 2 N.C. auxiliary contacts

AFS400 ... AFS750 contactors are designed for machine safety applications. They are delivered
03
with fixed 1 left (1 N.O + 1 N.C.) and 1 right (1 N.C.) side mounted auxiliary contact blocks making
them ideal for monitoring and controlling circuits.
Mechanically linked contacts make your system safer.
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 coils to cover control voltages between 24...500 V
50/60 Hz and 20...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
1SFC101228V0001 • mirror and mechanically linked contacts, with front marked symbol acc. to IEC60947-5-1, always
guaranteeing the right contactor status
• side-mounted auxiliary contact blocks:
- permanently fixed
AFS460-30-12 - yellow housing for easy identification
-7
- minimum switching capacity 3 V / 1 mA, with a failure rate 10 acc. to IEC 60947-5-4
• built-in surge suppression
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc fitted Pkg
θ ≤ 40 °C rating rating (1 pce)
400 V 690 V 480 V 600 V AC
AC-3 AC-1
V 50/60
kW A hp A Hz V DC kg
200 600 350 550 - 24…60 1 2 AFS400-30-12-68 1SFL577081R6812 (1) 12.000
48…130 48…130 1 2 AFS400-30-12-69 1SFL577081R6912 12.000
100…250 100…250 1 2 AFS400-30-12-70 1SFL577081R7012 12.000
1SFC101226V0001 250 700 400 650 - 48…130 24…60 1 2 AFS460-30-12-68 1SFL597081R6812 (1) 12.000
AFS400-30-12-71
1SFL577081R7112
12.000
1 2
250…500 250…500
1 2
48…130
AFS460-30-12-69
12.000
1SFL597081R6912
100…250 100…250
1 2
AFS460-30-12-71
12.000
1SFL597081R7112
250…500 250…500 1 2 AFS460-30-12-70 1SFL597081R7012 12.000
AFS750-30-12 315 800 500 750 - 24…60 1 2 AFS580-30-12-68 1SFL617081R6812 (1) 15.000
48…130 48…130 1 2 AFS580-30-12-69 1SFL617081R6912 15.000
100…250 100…250 1 2 AFS580-30-12-70 1SFL617081R7012 15.000
250…500 250…500 1 2 AFS580-30-12-71 1SFL617081R7112 15.000
400 1050 600 900 - 24…60 1 2 AFS750-30-12-68 1SFL637081R6812 (1) 15.000
48…130 48…130 1 2 AFS750-30-12-69 1SFL637081R6912 15.000
100…250 100…250 1 2 AFS750-30-12-70 1SFL637081R7012 15.000
250…500 250…500 1 2 AFS750-30-12-71 1SFL637081R7112 15.000
(1) The connection polarities indicated close to the coil terminals must be respected: A1 for the positive pole and A2 for the
negative pole.
(2) Up to 850 V DC for AFS580, AFS750.
AFS400...AFS750 are equipped with low voltage inputs for control, for example by a PLC.
Control inputs

AFS400, AFS460 AFS580, AFS750

Main dimensions mm, inches
