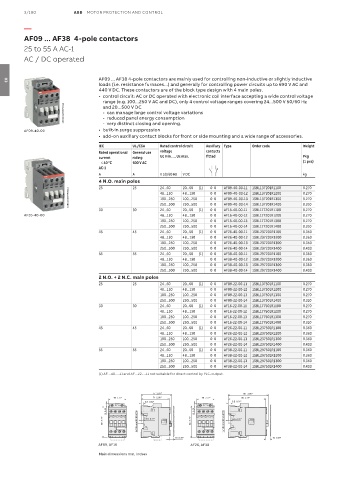

3/180 ABB MOTOR PROTECTION AND CONTROL

—
AF09 ... AF38 4-pole contactors

25 to 55 A AC-1
AC / DC operated

AF09 ... AF38 4-pole contactors are mainly used for controlling non-inductive or slightly inductive
loads (i.e. resistance furnaces...) and generally for controlling power circuits up to 690 V AC and
03
440 V DC. These contactors are of the block type design with 4 main poles.
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 control voltage ranges covering 24...500 V 50/60 Hz
1SBC101095F0014 - can manage large control voltage variations
and 20...500 V DC
- reduced panel energy consumption
- very distinct closing and opening.
AF09-40-00 • built-in surge suppression
• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General use voltage contacts
current rating Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C 600 V AC (1 pce)
AC-1
A A V 50/60 Hz V DC kg
4 N.O. main poles 24...60 20...60 (1) 0 0 AF09-40-00-11 1SBL137201R1100 0.270
25
25
1SBC101097F0014 48...130 48...130 0 0 AF09-40-00-12 1SBL137201R1200 0.270
1SBL137201R1300
0.270
100...250
100...250
0 0
AF09-40-00-13
20...60
0 0
24...60
AF16-40-00-11
30 30 250...500 250...500 (1) 0 0 AF09-40-00-14 1SBL137201R1400 0.310
0.270
1SBL177201R1100
AF26-40-00 48...130 48...130 0 0 AF16-40-00-12 1SBL177201R1200 0.270
100...250 100...250 0 0 AF16-40-00-13 1SBL177201R1300 0.270
250...500 250...500 0 0 AF16-40-00-14 1SBL177201R1400 0.310
45 45 24...60 20...60 (1) 0 0 AF26-40-00-11 1SBL237201R1100 0.360
48...130 48...130 0 0 AF26-40-00-12 1SBL237201R1200 0.360
100...250 100...250 0 0 AF26-40-00-13 1SBL237201R1300 0.360
250...500 250...500 0 0 AF26-40-00-14 1SBL237201R1400 0.400
55 55 24...60 20...60 (1) 0 0 AF38-40-00-11 1SBL297201R1100 0.360
48...130 48...130 0 0 AF38-40-00-12 1SBL297201R1200 0.360
100...250 100...250 0 0 AF38-40-00-13 1SBL297201R1300 0.360
250...500 250...500 0 0 AF38-40-00-14 1SBL297201R1400 0.400
2 N.O. + 2 N.C. main poles
25 25 24...60 20...60 (1) 0 0 AF09-22-00-11 1SBL137501R1100 0.270
48...130 48...130 0 0 AF09-22-00-12 1SBL137501R1200 0.270
100...250 100...250 0 0 AF09-22-00-13 1SBL137501R1300 0.270
250...500 250...500 0 0 AF09-22-00-14 1SBL137501R1400 0.310
30 30 24...60 20...60 (1) 0 0 AF16-22-00-11 1SBL177501R1100 0.270
48...130 48...130 0 0 AF16-22-00-12 1SBL177501R1200 0.270
100...250 100...250 0 0 AF16-22-00-13 1SBL177501R1300 0.270
250...500 250...500 0 0 AF16-22-00-14 1SBL177501R1400 0.310
45 45 24...60 20...60 (1) 0 0 AF26-22-00-11 1SBL237501R1100 0.360
48...130 48...130 0 0 AF26-22-00-12 1SBL237501R1200 0.360
100...250 100...250 0 0 AF26-22-00-13 1SBL237501R1300 0.360
250...500 250...500 0 0 AF26-22-00-14 1SBL237501R1400 0.400
55 55 24...60 20...60 (1) 0 0 AF38-22-00-11 1SBL297501R1100 0.360
48...130 48...130 0 0 AF38-22-00-12 1SBL297501R1200 0.360
100...250 100...250 0 0 AF38-22-00-13 1SBL297501R1300 0.360
250...500 250...500 0 0 AF38-22-00-14 1SBL297501R1400 0.400
(1) AF..-40-..-11 and AF..-22-..-11 not suitable for direct control by PLC-output.
77 3.03" 101 3.98"
35 1.38"
45 1.77" 71 2.80" 45 1.77" 2 x 95 3.74" 35 1.38" 2 x
ø 4.2 0.17"
5.5 0.22" M4 8-32 UNC 5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 80 3.15" 60 2.36" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"
5 0.20" 5 0.20"

10 0.39" 10 0.39"
5 0.20" 5 0.20"
AF09, AF16 AF26, AF38
Main dimensions mm, inches
