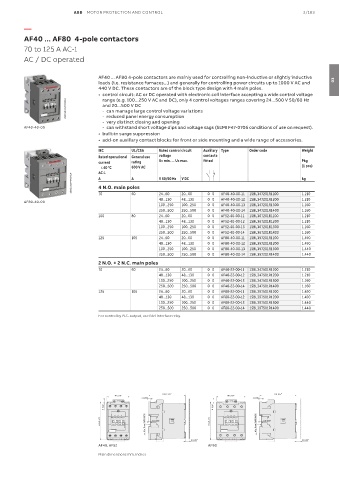

ABB MOTOR PROTECTION AND CONTROL 3/183

—

AF40 ... AF80 4-pole contactors
70 to 125 A AC-1
AC / DC operated

AF40 ... AF80 4-pole contactors are mainly used for controlling non-inductive or slightly inductive
loads (i.e. resistance furnaces...) and generally for controlling power circuits up to 1000 V AC and 03
440 V DC. These contactors are of the block type design with 4 main poles.
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 control voltages ranges covering 24...500 V 50/60 Hz
1SBC101045V0014 and 20...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
- very distinct closing and opening
AF40-40-00 - can withstand short voltage dips and voltage sags (SEMI F47-0706 conditions of use on request).
• built-in surge suppression
• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General use voltage contacts
current rating Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C 600 V AC (1 pce)
AC-1
1SBC101048V0014 A 4 N.O. main poles V 50/60 Hz V DC kg
A

24...60
70
60
48...130 20...60 0 0 AF40-40-00-11 1SBL347201R1100 1.210
0 0
48...130
1.210
1SBL347201R1200
AF40-40-00-12
AF80-40-00
100...250 100...250 0 0 AF40-40-00-13 1SBL347201R1300 1.160
250...500 250...500 0 0 AF40-40-00-14 1SBL347201R1400 1.160
100 80 24...60 20...60 0 0 AF52-40-00-11 1SBL367201R1100 1.210
48...130 48...130 0 0 AF52-40-00-12 1SBL367201R1200 1.210
100...250 100...250 0 0 AF52-40-00-13 1SBL367201R1300 1.160
250...500 250...500 0 0 AF52-40-00-14 1SBL367201R1400 1.160
125 105 24...60 20...60 0 0 AF80-40-00-11 1SBL397201R1100 1.490
48...130 48...130 0 0 AF80-40-00-12 1SBL397201R1200 1.490
100...250 100...250 0 0 AF80-40-00-13 1SBL397201R1300 1.440
250...500 250...500 0 0 AF80-40-00-14 1SBL397201R1400 1.440
2 N.O. + 2 N.C. main poles
70 60 24...60 20...60 0 0 AF40-22-00-11 1SBL347501R1100 1.210
48...130 48...130 0 0 AF40-22-00-12 1SBL347501R1200 1.210
100...250 100...250 0 0 AF40-22-00-13 1SBL347501R1300 1.160
250...500 250...500 0 0 AF40-22-00-14 1SBL347501R1400 1.160
125 105 24...60 20...60 0 0 AF80-22-00-11 1SBL397501R1100 1.490
48...130 48...130 0 0 AF80-22-00-12 1SBL397501R1200 1.490
100...250 100...250 0 0 AF80-22-00-13 1SBL397501R1300 1.440
250...500 250...500 0 0 AF80-22-00-14 1SBL397501R1400 1.440
For control by PLC-output, use RA4 interface relay.

113.5 4.47" 116 4.57"
70 2.76" 90 3.54"
7 0.28" 7 0.28"
6 0.24" 6 0.24"
35 x 15 mm EN/IEC 60715 35 x 15 mm EN/IEC 60715
119.5 4.70" 5.5 5.5 0.22"" 2 119.5 4.70" 5.5 0.22"
0.2

10 0.39" 10 0.39"
AF40, AF52 AF80
Main dimensions mm, inches
