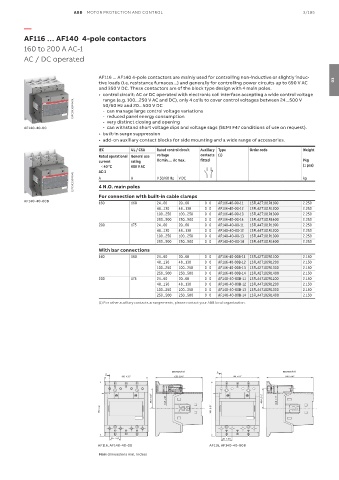

ABB MOTOR PROTECTION AND CONTROL 3/185

—
AF116 … AF140 4-pole contactors

160 to 200 A AC-1
AC / DC operated

AF116 ... AF140 4-pole contactors are mainly used for controlling non-inductive or slightly induc-
tive loads (i.e. resistance furnaces...) and generally for controlling power circuits up to 690 V AC 03
and 350 V DC. These contactors are of the block type design with 4 main poles.
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 coils to cover control voltages between 24...500 V
1SFC101158V0001 50/60 Hz and 20...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
- very distinct closing and opening
AF140-40-00 - can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request).
• built-in surge suppression
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational General use voltage contacts (1)
current rating Uc min. ... Uc max. fitted Pkg
θ ≤ 40 °C 600 V AC (1 pce)
AC-1
1SFC101193V0001 A 4 N.O. main poles V 50/60 Hz V DC kg
A

For connection with built-in cable clamps
AF140-40-00B 160 160 24...60 20...60 0 0 AF116-40-00-11 1SFL427101R1100 2.250
48...130 48...130 0 0 AF116-40-00-12 1SFL427101R1200 2.250
100...250 100...250 0 0 AF116-40-00-13 1SFL427101R1300 2.250
250...500 250...500 0 0 AF116-40-00-14 1SFL427101R1400 2.250
200 175 24...60 20...60 0 0 AF140-40-00-11 1SFL447101R1100 2.250
48...130 48...130 0 0 AF140-40-00-12 1SFL447101R1200 2.250
100...250 100...250 0 0 AF140-40-00-13 1SFL447101R1300 2.250
250...500 250...500 0 0 AF140-40-00-14 1SFL447101R1400 2.250
With bar connections
160 160 24...60 20...60 0 0 AF116-40-00B-11 1SFL427102R1100 2.150
48...130 48...130 0 0 AF116-40-00B-12 1SFL427102R1200 2.150
100...250 100...250 0 0 AF116-40-00B-13 1SFL427102R1300 2.150
250...500 250...500 0 0 AF116-40-00B-14 1SFL427102R1400 2.150
200 175 24...60 20...60 0 0 AF140-40-00B-11 1SFL447102R1100 2.150
48...130 48...130 0 0 AF140-40-00B-12 1SFL447102R1200 2.150
100...250 100...250 0 0 AF140-40-00B-13 1SFL447102R1300 2.150
250...500 250...500 0 0 AF140-40-00B-14 1SFL447102R1400 2.150
(1) For other auxiliary contacts arrangements, please contact your ABB local organization.

A
A
SECTION A- SECTION A-A A A SECTION A- SECTION A-A

A A
120 4.72" 120 4.72" 128 5.04" 128 5.04" 120 4.72" 120 4.72" 128 5.04" 128 5.04"
55.5 0.22" 55.5 0.22" 19.5 4.96" 19.5 4.96" 55.5 2.18" 55.5 2.18" 19.5 0.77" 19.5 0.77"
150 5.91" 150 5.91" 150 5.91" 150 5.91"

30 1.18" 30 1.18" 30 1.18" 30 1.18"
AF116, AF140-40-00 AF116, AF140-40-00B
Main dimensions mm, inches
