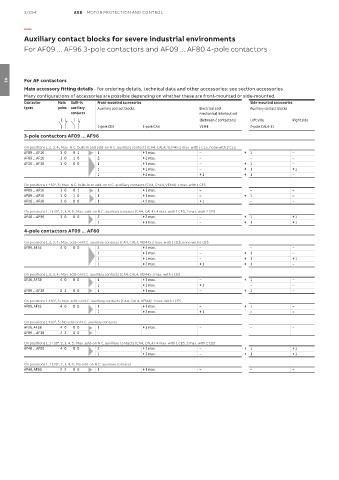

Auxiliary contact blocks for severe industrial environments
For AF09 ... AF96 3-pole contactors and AF09 ... AF80 4-pole contactors

For AF contactors
03
Main accessory fitting details - for ordering details, technical data and other accessories: see section accessories
Many configurations of accessories are possible depending on whether these are front-mounted or side-mounted.
Contactor Main Built-in Front-mounted accessories Side-mounted accessories
types poles auxiliary Auxiliary contact blocks Electrical and Auxiliary contact blocks
contacts mechanical interlock set
(Between 2 contactors) Left side Right side
1-pole CE5 1-pole CA4 VEM4 2-pole CAL4-11
3-pole contactors AF09 ... AF96

On positions 1, 2, 3, 4 ; Max. N.C. built-in and add-on N.C. auxiliary contacts (CA4, CAL4, VEM4): 2 max. with 1 CE5, none with 2 CE5
AF09 ... AF16 3 0 0 1 1 + 3 max. – + 1 –
AF09 ... AF16 3 0 1 0 2 + 2 max. – – –
AF26 ... AF38 3 0 0 0 1 + 3 max. – + 1 –
1 + 1 max. – + 1 + 1
1 + 2 max. + 1 + 1 –
On positions 1 ±30°, 5 ; Max. N.C. built-in or add-on N.C. auxiliary contacts (CA4, CAL4, VEM4): 1 max. with 1 CE5
AF09 ... AF16 3 0 0 1 1 + 3 max. – – –
AF09 ... AF16 3 0 1 0 1 + 3 max. – + 1 –
AF26 ... AF38 3 0 0 0 1 + 2 max. + 1 – –
On positions 1, 1 ±30°, 2, 3, 4, 5 ; Max. add-on N.C. auxiliary contacts (CA4, CAL4): 4 max. with 1 CE5, 2 max. with 2 CE5
AF40 ... AF96 3 0 0 0 2 + 2 max. – + 1 + 1
1 + 3 max. – + 1 + 1
4-pole contactors AF09 ... AF80

On positions 1, 2, 3, 4 ; Max. add-on N.C. auxiliary contacts (CA4, CAL4, VEM4): 2 max. with 1 CE5, none with 2 CE5
AF09, AF16 4 0 0 0 2 + 2 max. – – –
1 + 3 max. – + 1 –
1 + 1 max. – + 1 + 1
1 + 2 max. + 1 + 1 –

On positions 1, 2, 3, 4 ; Max. add-on N.C. auxiliary contacts (CA4, CAL4, VEM4): 1 max. with 1 CE5
AF26, AF38 4 0 0 0 1 + 3 max. – + 1 –
1 + 2 max. + 1 – –
AF09 ... AF38 2 2 0 0 1 + 3 max. – + 1 –

On positions 1 ±30°, 5 ; Max. add-on N.C. auxiliary contacts (CA4, CAL4, VEM4): 1 max. with 1 CE5
AF09, AF16 4 0 0 0 1 + 3 max. – + 1 –
1 + 2 max. + 1 – –
On positions 1 ±30°, 5 ; No add-on N.C. auxiliary contacts
AF26, AF38 4 0 0 0 1 + 3 max. – – –
AF09 ... AF38 2 2 0 0

On positions 1, 1 ±30°, 2, 3, 4, 5 ; Max. add-on N.C. auxiliary contacts (CA4, CAL4): 4 max. with 1 CE5, 2 max. with 2 CE5
AF40 ... AF80 4 0 0 0 2 + 2 max. – + 1 + 1
1 + 3 max. – + 1 + 1
On positions 1, 1 ±30°, 2, 3, 4, 5 ; No add-on N.C. auxiliary contacts
AF40, AF80 2 2 0 0 1 + 3 max. – – –
