3/300 ABB MOTOR PROTECTION AND CONTROL

—

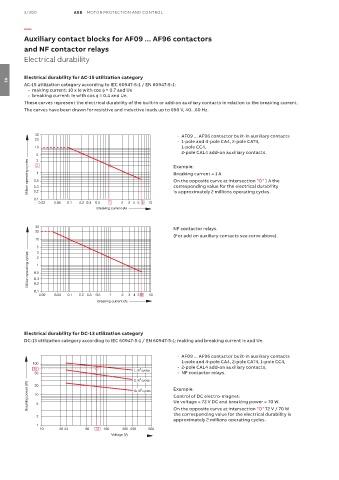

Auxiliary contact blocks for AF09 ... AF96 contactors
and NF contactor relays
Electrical durability

Electrical durability for AC-15 utilization category
AC-15 utilization category according to IEC 60947-5-1 / EN 60947-5-1:
03
- making current: 10 x Ie with cos ϕ = 0.7 and Ue
- breaking current: Ie with cos ϕ = 0.4 and Ue.
These curves represent the electrical durability of the built-in or add-on auxiliary contacts in relation to the breaking current.
The curves have been drawn for resistive and inductive loads up to 690 V, 40...60 Hz.

30 - AF09 ... AF96 contactor built-in auxiliary contacts
20
- 1-pole and 4-pole CA4, 2-pole CAT4,
10 1-pole CC4,
2-pole CAL4 add-on auxiliary contacts.
5 3 2
Million operating cycles 0.5 1 Example:

Breaking current = 1 A
On the opposite curve at intersection "O" 1 A the
corresponding value for the electrical durability
0.3
0.2
0.1 is approximately 2 millions operating cycles.
0.02 0.05 0.1 0.2 0.3 0.5 1 2 3 4 5 6 10
Breaking current (A)

30 NF contactor relays.
20
(For add on auxiliary contacts see curve above).
10
5 3 2
Million operating cycles 0.5 1

0.3
0.2
0.1
0.02 0.05 0.1 0.2 0.3 0.5 1 2 3 45 6 10
Breaking current (A)

Electrical durability for DC-13 utilization category
DC-13 utilization category according to IEC 60947-5-1 / EN 60947-5-1: making and breaking current Ie and Ue.

- AF09 ... AF96 contactor built-in auxiliary contacts
1-pole and 4-pole CA4, 2-pole CAT4, 1-pole CC4,
100
70 1.10 cycles - 2-pole CAL4 add-on auxiliary contacts,
6
50 - NF contactor relays.
6
3.10 cycles
Breaking power (W) 10 5 10.10 cycles Example:
20
6
Control of DC electro-magnet:
Ue voltage = 72 V DC and breaking power = 70 W.
the corresponding value for the electrical durability is
2 On the opposite curve at intersection "O" 72 V / 70 W
approximately 2 millions operating cycles.
1
10 20 24 50 72 100 200 250 500
Voltage (V)
