3/346 ABB MOTOR PROTECTION AND CONTROL

—

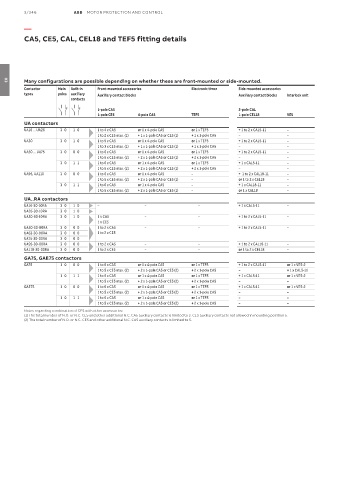

CA5, CE5, CAL, CEL18 and TEF5 fitting details

Many configurations are possible depending on whether these are front-mounted or side-mounted.
03
Contactor Main Built-in Front-mounted accessories Electronic timer Side-mounted accessories
types poles auxiliary Auxiliary contact blocks Auxiliary contact blocks Interlock unit
contacts

1-pole CA5 2-pole CAL
1-pole CE5 4-pole CA5 TEF5 1-pole CEL18 VE5
UA contactors
UA16 ... UA26 3 0 1 0 1 to 4 x CA5 or 1 x 4-pole CA5 or 1 x TEF5 + 1 to 2 x CAL5-11 –
1 to 2 x CE5 max. (1) + 1 x 1-pole CA5 or CE5 (1) + 1 x 1-pole CA5 – –
UA30 3 0 1 0 1 to 5 x CA5 or 1 x 4-pole CA5 or 1 x TEF5 + 1 to 2 x CAL5-11 –
1 to 3 x CE5 max. (1) + 1 x 1-pole CA5 or CE5 (1) + 1 x 1-pole CA5 – –
UA50 ... UA75 3 0 0 0 1 to 6 x CA5 or 1 x 4-pole CA5 or 1 x TEF5 + 1 to 2 x CAL5-11 –
1 to 5 x CE5 max. (2) + 2 x 1-pole CA5 or CE5 (1) + 2 x 1-pole CA5 – –
3 0 1 1 1 to 6 x CA5 or 1 x 4-pole CA5 or 1 x TEF5 + 1 x CAL5-11 –
1 to 5 x CE5 max. (2) + 2 x 1-pole CA5 or CE5 (1) + 2 x 1-pole CA5 – –
UA95, UA110 3 0 0 0 1 to 6 x CA5 or 1 x 4-pole CA5 – + 1 to 2 x CAL18-11 –
1 to 5 x CE5 max. (2) + 2 x 1-pole CA5 or CE5 (1) – or 1 to 2 x CEL18 –
3 0 1 1 1 to 6 x CA5 or 1 x 4-pole CA5 – + 1 x CAL18-11 –
1 to 5 x CE5 max. (2) + 2 x 1-pole CA5 or CE5 (1) – or 1 x CEL18 –
UA..RA contactors
UA16-30-10RA 3 0 1 0 – – – + 1 x CAL5-11 –
UA26-30-10RA 3 0 1 0
UA30-30-10RA 3 0 1 0 1 x CA5 – – + 1 to 2 x CAL5-11 –
1 x CE5
UA50-30-00RA 3 0 0 0 1 to 2 x CA5 – – + 1 to 2 x CAL5-11 –
UA63-30-00RA 3 0 0 0 1 to 2 x CE5
UA75-30-00RA 3 0 0 0
UA95-30-00RA 3 0 0 0 1 to 2 x CA5 – – + 1 to 2 x CAL18-11 –
UA110-30-00RA 3 0 0 0 1 to 2 x CE5 – – or 1 to 2 x CEL18 –
GA75, GAE75 contactors
GA75 1 0 0 0 1 to 6 x CA5 or 1 x 4-pole CA5 or 1 x TEF5 + 1 to 2 x CAL5-11 or 1 x VE5-2
1 to 5 x CE5 max. (2) + 2 x 1-pole CA5 or CE5 (2) + 2 x 1-pole CA5 – + 1 x CAL5-11
1 0 1 1 1 to 6 x CA5 or 1 x 4-pole CA5 or 1 x TEF5 + 1 x CAL5-11 or 1 x VE5-2
1 to 5 x CE5 max. (2) + 2 x 1-pole CA5 or CE5 (2) + 2 x 1-pole CA5 – –
GAE75 1 0 0 0 1 to 6 x CA5 or 1 x 4-pole CA5 or 1 x TEF5 + 1 x CAL5-11 or 1 x VE5-2
1 to 5 x CE5 max. (2) + 2 x 1-pole CA5 or CE5 (2) + 2 x 1-pole CA5 – –
1 0 1 1 1 to 6 x CA5 or 1 x 4-pole CA5 or 1 x TEF5 – –
1 to 5 x CE5 max. (2) + 2 x 1-pole CA5 or CE5 (2) + 2 x 1-pole CA5 – –
Notes regarding combination of CE5 with other accessories:
(1) The total number of N.O. or N.C. CE5 and other additional N.C. CA5 auxiliary contacts is limited to 3. CES auxiliary contacts not allowed in mounting position 5.
(2) The total number of N.O. or N.C. CE5 and other additional N.C. CA5 auxiliary contacts is limited to 5.
