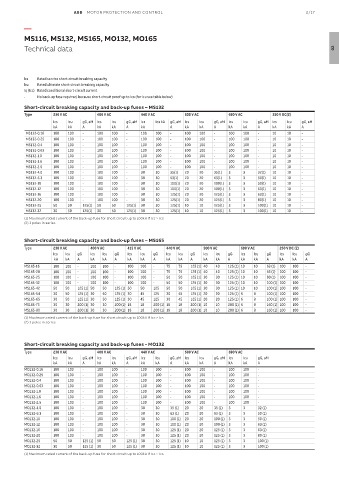

ABB MOTOR PROTECTION AND CONTROL 2/17
—
MS116, MS132, MS165, MO132, MO165
Technical data 02
lcs Rated service short-circuit breaking capacity
lcu Rated ultimate short-circuit breaking capacity
Iq (Icc) Rated conditional short-circuit current
- No back-up fuse required, because short-circuit proof up to Icu (for Icu see table below)
Short-circuit breaking capacity and back-up fuses – MS132
Type 230 V AC 400 V AC 440 V AC 500 V AC 690 V AC 250 V DC(2)
Ics Icu gG, aM Ics Icu gG, aM Ics Icu kA gG, aM Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM
kA kA A kA kA A kA A kA kA A kA kA A kA kA A
MS132-0.16 100 100 - 100 100 - 100 100 - 100 100 - 100 100 - 10 10 -
MS132-0.25 100 100 - 100 100 - 100 100 - 100 100 - 100 100 - 10 10 -
MS132-0.4 100 100 - 100 100 - 100 100 - 100 100 - 100 100 - 10 10 -
MS132-0.63 100 100 - 100 100 - 100 100 - 100 100 - 100 100 - 10 10 -
MS132-1.0 100 100 - 100 100 - 100 100 - 100 100 - 100 100 - 10 10 -
MS132-1.6 100 100 - 100 100 - 100 100 - 100 100 - 100 100 - 10 10 -
MS132-2.5 100 100 - 100 100 - 100 100 - 100 100 - 100 100 - 10 10 -
MS132-4.0 100 100 - 100 100 - 30 30 35(1) 20 20 35(1) 3 3 32(1) 10 10 -
MS132-6.3 100 100 - 100 100 - 30 30 63(1) 20 20 63(1) 3 3 50(1) 10 10 -
MS132-10 100 100 - 100 100 - 30 30 100(1) 20 20 100(1) 3 3 50(1) 10 10 -
MS132-12 100 100 - 100 100 - 30 30 100(1) 20 20 100(1) 3 3 63(1) 10 10 -
MS132-16 100 100 - 100 100 - 30 30 125(1) 20 20 125(1) 3 3 63(1) 10 10 -
MS132-20 100 100 - 100 100 - 30 30 125(1) 20 20 125(1) 3 3 80(1) 10 10 -
MS132-25 50 50 125(1) 50 50 125(1) 30 30 125(1) 10 10 125(1) 3 3 100(1) 10 10 -
MS132-32 30 50 125(1) 30 50 125(1) 30 30 125(1) 10 10 125(1) 3 3 100(1) 10 10 -
(1) Maximum rated current of the back-up fuse for short circuit up to 100kA if Icc > Ics
(2) 3 poles in series
Short-circuit breaking capacity and back-up fuses – MS165
Type 230 V AC 400 V AC 415 V AC 440 V AC 500 V AC 690 V AC 250 V DC (2)
Ics Icu gG Ics Icu gG Ics Icu gG Ics Icu gG Ics Icu gG Ics Icu gG Ics Icu gG
kA kA A kA kA A kA kA A kA kA A kA kA A kA kA A kA kA A
MS165-16 100 100 - 100 100 - 100 100 - 75 75 125 (1) 40 40 125 (1) 10 10 63 (1) 100 100 -
MS165-20 100 100 - 100 100 - 100 100 - 75 75 125 (1) 40 40 125 (1) 10 10 63 (1) 100 100 -
MS165-25 100 100 - 100 100 - 100 100 - 50 50 125 (1) 30 30 125 (1) 10 10 80 (1) 100 100 -
MS165-32 100 100 - 100 100 - 100 100 - 50 50 125 (1) 30 30 125 (1) 10 10 100 (1) 100 100 -
MS165-42 50 50 125 (1) 50 50 125 (1) 50 50 125 50 50 125 (1) 30 30 125 (1) 10 10 100 (1) 100 100 -
MS165-54 30 50 125 (1) 30 50 125 (1) 30 45 125 30 45 125 (1) 20 20 125 (1) 6 8 100 (1) 100 100 -
MS165-65 30 50 125 (1) 30 50 125 (1) 30 45 125 30 45 125 (1) 20 20 125 (1) 6 8 100 (1) 100 100 -
MS165-73 30 30 200 (1) 30 30 200 (1) 18 18 200 (1) 18 18 200 (1) 10 10 200 (1) 6 8 160 (1) 100 100 -
MS165-80 30 30 200 (1) 30 30 200 (1) 18 18 200 (1) 18 18 200 (1) 10 10 200 (1) 6 8 160 (1) 100 100 -
(1) Maximum rated current of the back-up fuse for short circuit up to 100kA if Icc > Ics
(2) 3 poles in series
Short-circuit breaking capacity and back-up fuses - MO132
Type 230 V AC 400 V AC 440 V AC 500 V AC 690 V AC
Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM Ics Icu gG, aM
kA kA A kA kA A kA kA A kA kA A kA kA A
MO132-0.16 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MO132-0.25 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MO132-0.4 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MO132-0.63 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MO132-1.0 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MO132-1.6 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MO132-2.5 100 100 - 100 100 - 100 100 - 100 100 - 100 100 -
MO132-4.0 100 100 - 100 100 - 30 30 35 (1) 20 20 35 (1) 3 3 32 (1)
MO132-6.3 100 100 - 100 100 - 30 30 63 (1) 20 20 63 (1) 3 3 50 (1)
MO132-10 100 100 - 100 100 - 30 30 100 (1) 20 20 100 (1) 3 3 50 (1)
MO132-12 100 100 - 100 100 - 30 30 100 (1) 20 20 100 (1) 3 3 63 (1)
MO132-16 100 100 - 100 100 - 30 30 125 (1) 20 20 125 (1) 3 3 63 (1)
MO132-20 100 100 - 100 100 - 30 30 125 (1) 20 20 125 (1) 3 3 80 (1)
MO132-25 50 50 125 (1) 50 50 125 (1) 30 30 125 (1) 10 10 125 (1) 3 3 100 (1)
MO132-32 30 50 125 (1) 30 50 125 (1) 30 30 125 (1) 10 10 125 (1) 3 3 100 (1)
(1) Maximum rated current of the back-up fuse for short circuit up to 100kA if Icc > Ics
