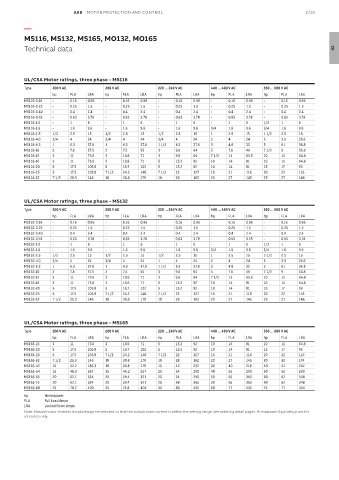

ABB MOTOR PROTECTION AND CONTROL 2/19
—
MS116, MS132, MS165, MO132, MO165
Technical data 02
UL/CSA Motor ratings, three phase – MS116
Type 200 V AC 208 V AC 220 … 240 V AC 440 … 480 V AC 550 … 600 V AC
hp FLA LRA hp FLA LRA hp FLA LRA hp FLA LRA hp FLA LRA
MS116-0.16 - 0.16 0.96 - 0.16 0.96 - 0.16 0.96 - 0.16 0.96 - 0.16 0.96
MS116-0.25 - 0.25 1.5 - 0.25 1.5 - 0.25 1.5 - 0.25 1.5 - 0.25 1.5
MS116-0.40 - 0.4 2.4 - 0.4 2.4 - 0.4 2.4 - 0.4 2.4 - 0.4 2.4
MS116-0.63 - 0.63 3.78 - 0.63 3.78 - 0.63 3.78 - 0.63 3.78 - 0.63 3.78
MS116-1.0 - 1 6 - 1 6 - 1 6 - 1 6 1/2 1 6
MS116-1.6 - 1.6 9.6 - 1.6 9.6 - 1.6 9.6 3/4 1.6 9.6 3/4 1.6 9.6
MS116-2.5 1/2 2.5 15 1/2 2.5 15 1/2 2.5 15 1 2.5 15 1 1/2 2.5 15
MS116-4.0 3/4 4 24 3/4 4 24 3/4 4 24 2 4 24 3 3.9 25.6
MS116-6.3 1 6.3 37.8 1 6.3 37.8 1 1/2 6.3 37.8 3 4.8 32 5 6.1 36.8
MS116-10 2 7.8 57.5 2 7.5 55 3 9.6 64 5 7.6 46 7 1/2 9 50.8
MS116-12 3 11 73.6 3 10.6 71 3 9.6 64 7 1/2 11 63.5 10 11 64.8
MS116-16 3 11 73.6 3 10.6 71 5 15.2 92 10 14 81 10 11 64.8
MS116-20 5 17.5 105.8 5 16.7 102 5 15.2 92 10 14 81 15 17 93
MS116-25 5 17.5 105.8 7 1/2 24.2 140 7 1/2 22 127 15 21 116 20 22 116
MS116-32 7 1/2 25.3 146 10 30.8 179 10 28 162 20 27 145 25 27 146
UL/CSA Motor ratings, three phase – MS132
Type 200 V AC 208 V AC 220 … 240 V AC 440 … 480 V AC 550 … 600 V AC
hp FLA LRA hp FLA LRA hp FLA LRA hp FLA LRA hp FLA LRA
MS132-0.16 - 0.16 0.96 - 0.16 0.96 - 0.16 0.96 - 0.16 0.96 - 0.16 0.96
MS132-0.25 - 0.25 1.5 - 0.25 1.5 - 0.25 1.5 - 0.25 1.5 - 0.25 1.5
MS132-0.40 - 0.4 2.4 - 0.4 2.4 - 0.4 2.4 - 0.4 2.4 - 0.4 2.4
MS132-0.63 - 0.63 3.78 - 0.63 3.78 - 0.63 3.78 - 0.63 3.78 - 0.63 3.78
MS132-1.0 - 1 6 - 1 6 - 1 6 - 1 6 1/2 1 6
MS132-1.6 - 1.6 9.6 - 1.6 9.6 - 1.6 9.6 3/4 1.6 9.6 3/4 1.6 9.6
MS132-2.5 1/2 2.5 15 1/2 2.5 15 1/2 2.5 15 1 2.5 15 1-1/2 2.5 15
MS132-4.0 3/4 4 24 3/4 4 24 1 4 24 2 4 24 3 3.9 25.6
MS132-6.3 1 6.3 37.8 1 6.3 37.8 1 1/2 6.3 37.8 3 4.8 32 5 6.1 36.8
MS132-10 2 7.8 57.5 2 7.5 55 3 9.6 64 5 7.6 46 7 1/2 9 50.8
MS132-12 3 11 73.6 3 10.6 71 3 9.6 64 7 1/2 11 63.5 10 11 64.8
MS132-16 3 11 73.6 3 10.6 71 5 15.2 92 10 14 81 10 11 64.8
MS132-20 5 17.5 105.8 5 16.7 102 5 15.2 92 10 14 81 15 17 93
MS132-25 5 17.5 105.8 7 1/2 24.2 140 7 1/2 22 127 15 21 116 20 22 116
MS132-32 7 1/2 25.3 146 10 30.8 179 10 28 162 20 27 145 25 27 146
UL/CSA Motor ratings, three phase – MS165
Type 200 V AC 208 V AC 220 … 240 V AC 440 … 480 V AC 550 … 600 V AC
hp FLA LRA hp FLA LRA hp FLA LRA hp FLA LRA hp FLA LRA
MS165-16 3 11 73.6 3 10.6 71 5 15.2 92 10 14 81 10 11 64.8
MS165-20 5 17.5 105.8 5 16.7 102 5 15.2 92 10 14 81 15 17 93
MS165-25 5 17.5 105.8 7 1/2 24.2 140 7 1/2 22 127 15 21 116 20 22 116
MS165-32 7 1/2 25.3 146 10 30.8 179 10 28 162 20 27 145 30 32 174
MS165-42 10 32.2 186.3 10 30.8 179 15 42 232 30 40 218 40 41 232
MS165-54 15 48.3 267 15 46.2 257 20 54 290 40 52 290 50 52 290
MS165-65 20 62.1 334 20 59.4 321 20 54 290 50 65 363 60 62 348
MS165-73 20 62.1 334 20 59.4 321 25 68 365 50 65 363 60 62 348
MS165-80 25 78.2 420 25 74.8 404 30 80 435 60 77 435 75 77 434
hp Horsepower
FLA Full Load Amps
LRA Locked Rotor Amps
Note: Manual motor starters should always be selected so that the actual motor current is within the setting range; see ordering detail pages. Horsepower (hp) ratings are for
reference only.
