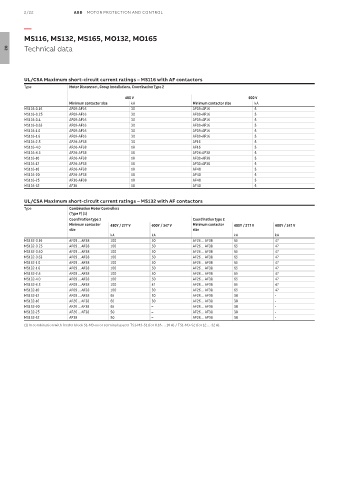

2/22 ABB MOTOR PROTECTION AND CONTROL

—
MS116, MS132, MS165, MO132, MO165

Technical data
02

UL/CSA Maximum short-circuit current ratings – MS116 with AF contactors
Type Motor Disconnect, Group Installations, Coordination Type 2

480 V 600 V
Minimum contactor size kA Minimum contactor size kA
MS116-0.16 AF09-AF16 30 AF09-AF16 5
MS116-0.25 AF09-AF16 30 AF09-AF16 5
MS116-0.4 AF09-AF16 30 AF09-AF16 5
MS116-0.63 AF09-AF16 30 AF09-AF16 5
MS116-1.0 AF09-AF16 30 AF09-AF16 5
MS116-1.6 AF09-AF16 30 AF09-AF16 5
MS116-2.5 AF26-AF38 30 AF16 5
MS116-4.0 AF26-AF38 18 AF16 5
MS116-6.3 AF26-AF38 18 AF26-AF38 5
MS116-10 AF26-AF38 18 AF30-AF38 5
MS116-12 AF26-AF38 18 AF30-AF38 5
MS116-16 AF26-AF38 18 AF40 5
MS116-20 AF26-AF38 18 AF40 5
MS116-25 AF30-AF38 18 AF40 5
MS116-32 AF38 18 AF40 5

UL/CSA Maximum short-circuit current ratings – MS132 with AF contactors
Type Combination Motor Controllers
(Type F) (1)
Coordination type 1 Coordination type 2
Minimum contactor 480Y / 277 V 600Y / 347 V Minimum contactor 480Y / 277 V 600Y / 347 V
size size
kA kA kA kA
MS132-0.16 AF09 ... AF38 100 50 AF26 ... AF38 65 47
MS132-0.25 AF09 ... AF38 100 50 AF26 ... AF38 65 47
MS132-0.40 AF09 ... AF38 100 50 AF26 ... AF38 65 47
MS132-0.63 AF09 ... AF38 100 50 AF26 ... AF38 65 47
MS132-1.0 AF09 ... AF38 100 50 AF26 ... AF38 65 47
MS132-1.6 AF09 ... AF38 100 50 AF26 ... AF38 65 47
MS132-2.5 AF09 ... AF38 100 50 AF26 ... AF38 65 47
MS132-4.0 AF09 ... AF38 100 50 AF26 ... AF38 65 47
MS132-6.3 AF09 ... AF38 100 47 AF26 ... AF38 65 47
MS132-10 AF09 ... AF38 100 30 AF26 ... AF38 65 47
MS132-12 AF09 ... AF38 65 30 AF26 ... AF38 30 -
MS132-16 AF26 ... AF38 65 30 AF26 ... AF38 30 -
MS132-20 AF26 ... AF38 65 – AF26 ... AF38 30 -
MS132-25 AF26 ... AF38 50 – AF26 ... AF38 30 -
MS132-32 AF38 50 – AF26 ... AF38 30 -
(1) In combination with feeder block S1-M3-xx or terminal spacer TS1-M3-S1 (for 0.16 … 10 A) / TS1-M3-S2 (for 12 … 32 A).
