ABB MOTOR PROTECTION AND CONTROL 3/375

—

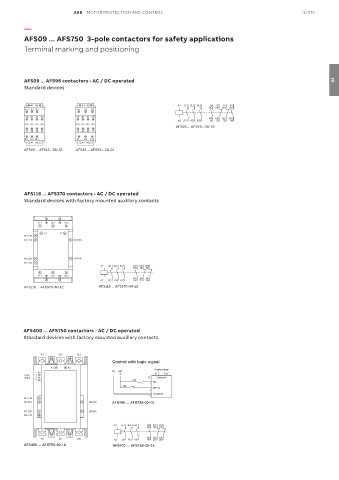

AFS09 ... AFS750 3-pole contactors for safety applications
Terminal marking and positioning

AFS09 ... AFS96 contactors - AC / DC operated 03
Standard devices

A1 A2 A1 A2 A1 1L1 3L2 5L3 13 21 31 43
NO NC NC NO
1L1 3L2 5L3 1L1 3L2 5L3
13 21 31 43 13 21 31 43 NO NC NC NO
A2 2T1 4T2 6T3 14 22 32 44
NO NC NC NO NO NC NC NO
AFS09 ... AFS96..-30-22
14 22 32 44 14 22 32 44
2T1 4T2 6T3 2T1 4T2 6T3
A1 A2 A1 A2
AFS09 ... AFS16..-30-22 AFS26 ... AFS96..-30-22

AFS116 ... AFS370 contactors - AC / DC operated
Standard devices with factory mounted auxiliary contacts

1L1 3L2 5L3

A1 A2
NO 13X
NC 21X 25X NC

NC 22X 26X NC
NO 14X
A1 1L1 3L2 5L3 13X 21X 25X
NO NC NC
2T1 4T2 6T3
NO NC NC
A2 2T1 4T2 6T3 14X 22X 26X
AFS116 ... AFS370-30-12 AFS116 ... AFS370-30-12

AFS400 ... AFS750 contactors - AC / DC operated
Standard devices with factory mounted auxiliary contacts

1L1 3L2 5L3
Control with logic signal
A1 A2 Supply voltage
0V 24V
X5 + A1 A2
Logic 1
signal 2 X5 Contactor
3 ON
1 ON
OFF
OFF_N
2
COMMON
3
NO 13X
NC 21X 25X NC AFS400 ... AFS750-30-12
NC 22X 26X NC
NO 14X
A1 1L1 3L2 5L3 13X 21X 25X
NO NC NC
NC
NO
NC
2T1 4T2 6T3 A2 2T1 4T2 6T3 14X 22X 26X
AFS400 ... AFS750-30-12 AFS400 ... AFS750-30-12
