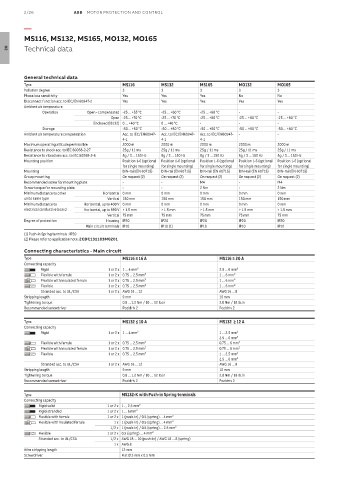

2/26             ABB  MOTOR PROTECTION AND CONTROL

          —
          MS116, MS132, MS165, MO132, MO165

          Technical data
   02



          General technical data
          Type                              MS116         MS132        MS165         MO132         MO165
          Pollution degree                  3             3            3             3             3
          Phase loss sensitivity            Yes           Yes          Yes           No            No
          Disconnect function acc. to IEC/EN 60947-2  Yes  Yes         Yes           Yes           Yes
          Ambient air temperature
                Operation       Open - compensated -25 ... +55 °C  -25 ... +60 °C  -25 ... +60 °C  -  -
                                        Open -25 ... +70 °C  -25 ... +70 °C  -25 ... +60 °C  -25 ... +60 °C  -25 ... +60 °C
                                  Enclosed (IB132)  0 ... +40 °C  0 ... +40 °C  -    -             -
                Storage                     -50 ... +80 °C  -50 ... +80 °C  -50 ... +80 °C  -50 ... +80 °C  -50 ... +80 °C
          Ambient air temperature compensation  Acc. to IEC/EN60947-  Acc. to IEC/EN60947-  Acc. to IEC/EN60947-  -  -
                                            4-1           4-1          4-1
          Maximum operating altitude permissible  2000 m  2000 m       2000 m        2000 m        2000 m
          Resistance to shock acc. to IEC 60068-2-27  25g / 11 ms  25g / 11 ms  25g / 11 ms  25g / 11 ms  25g / 11 ms
          Resistance to vibrations acc. to IEC 60068-2-6  5g / 3 ... 150 Hz  5g / 3 ... 150 Hz  5g / 3 ... 150 Hz  5g / 3 ... 150 Hz  5g / 3 ... 150 Hz
          Mounting position                 Position 1-6 (optional   Position 1-6 (optional   Position 1-6 (optional   Position 1-6 (optional   Position 1-6 (optional
                                            for single mounting)  for single mounting)  for single mounting)  for single mounting)  for single mounting)
          Mounting                          DIN-rail (EN 60715)  DIN-rail (EN 60715)  DIN-rail (EN 60715)  DIN-rail (EN 60715)  DIN-rail (EN 60715)
          Group mounting                    On request (2)  On request (2)  On request (2)  On request (2)  On request (2)
          Recommended screw for mounting plate  -         -            M4            -             M4
          Screw torque for mounting plate   -             -            2 Nm          -             2 Nm
          Minimum distance to other   Horizontal 0 mm     0 mm         0 mm          0 mm          0 mm
          units same type              Vertical 150 mm    150 mm       150 mm        150 mm        150 mm
          Minimum distance to    Horizontal, up to 400 V 0 mm  0 mm    0 mm          0 mm          0 mm
          electrical conductive board  Horizontal, up to 690 V > 1.5 mm  > 1.5 mm  > 1.5 mm  > 1.5 mm  > 1.5 mm
                                       Vertical 75 mm     75 mm        75 mm         75 mm         75 mm
          Degree of protection        Housing IP20        IP20         IP20          IP20          IP20
                               Main circuit terminals IP10  IP10 (1)   IP10          IP10          IP10
          (1) Push-in Spring terminals : IP20
          (2) Please refer to application note: 2CDC131183M0201
          Connecting characteristics - Main circuit
          Type                              MS116 ≤ 16 A                      MS116 ≥ 20 A
          Connecting capacity
               Rigid                   1 or 2 x 1 ... 4 mm²                   2.5 ... 6 mm²
               Flexible with ferrule   1 or 2 x 0.75 ... 2.5 mm²              1 ... 6 mm²
               Flexible with insulated ferrule  1 or 2 x 0.75 ... 2.5 mm²     1 ... 6 mm²
               Flexible                1 or 2 x 0.75 ... 2.5 mm²              1 ... 6 mm²
               Stranded acc. to UL/CSA  1 or 2 x AWG 16 ... 12                AWG 16 ... 8
          Stripping length                  9 mm                              10 mm
          Tightening torque                 0.8 ... 1.2 Nm / 10 … 12 Ib.in    2.0 Nm / 18 Ib.in
          Recommended screwdriver           Pozidriv 2                        Pozidriv 2

          Type                              MS132 ≤ 10 A                      MS132  ≥ 12 A
          Connecting capacity
               Rigid                   1 or 2 x 1 ... 4 mm²                   1 ... 2.5 mm²
                                                                              2.5 ... 6 mm²
               Flexible with ferrule   1 or 2 x 0.75 ... 2.5 mm²              0.75 ... 6 mm²
               Flexible with insulated ferrule  1 or 2 x 0.75 ... 2.5 mm²     0.75 ... 6 mm²
               Flexible                1 or 2 x 0.75 ... 2.5 mm²              1 ... 2.5 mm²
                                                                              2.5 ... 6 mm²
               Stranded acc. to UL/CSA  1 or 2 x AWG 16 ... 12                AWG 16 ... 8
          Stripping length                  9 mm                              10 mm
          Tightening torque                 0.8 ... 1.2 Nm / 10 … 12 Ib.in    2.0 Nm / 18 Ib.in
          Recommended screwdriver           Pozidriv 2                        Pozidriv 2

          Type                              MS132-K with Push-in Spring terminals
          Connecting capacity
               Rigid solid             1 or 2 x 1 ... 2.5 mm²
               Rigid stranded          1 or 2 x 1 ... 6 mm²
               Flexible with ferrule   1 or 2 x 1 (push-in) / 0.5 (spring) ... 4 mm²
               Flexible with insulated ferrule  1 x 1 (push-in) / 0.5 (spring) ... 4 mm²
                                        1/2 x 1 (push-in) / 0.5 (spring) ... 2.5 mm²
               Flexible                1 or 2 x 0.5 (spring) ... 4 mm²
               Stranded acc. to UL/CSA  1/2 x AWG 18 ... 10 (push-in) / AWG 18 ... 8 (spring)
                                         1 x AWG 8
          Wire stripping length             12 mm
          Screwdriver                       Flat Ø 3 mm x 0.5 mm
