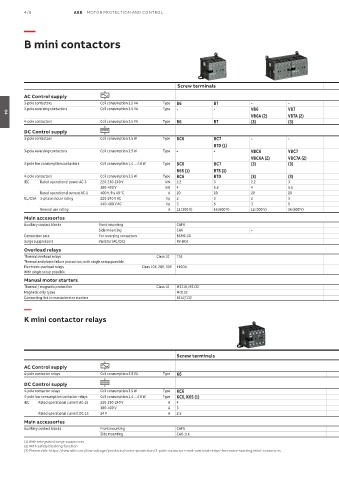

4/8 ABB MOTOR PROTECTION AND CONTROL

—

B mini contactors

Screw terminals Soldering pins Flat pins
AC Control supply
3-pole contactors Coil consumption 3.5 VA Type B6 B7 - - B6...P B7...P - - B6...F B7...F - -
3-pole reversing contactors Coil consumption 3.5 VA Type - - VB6 VB7 - - VB6...P VB7...P - - VB6...F VB7...F
VB6A (2) VB7A (2) VB6A...P (2) VB7A...P (2) VB6A...F (2) VB7A...F (2)
04
4-pole contactors Coil consumption 3.5 VA Type B6 B7 (3) (3) (3) (3) (3) (3) (3) (3)
DC Control supply
3-pole contactors Coil consumption 3.5 W Type BC6 BC7 - - BC6...P BC7...P - - BC6...F BC7...F - -
B7D (1) B7D...P (1) B7D...F (1)
3-pole reversing contactors Coil consumption 3.5 W Type - - VBC6 VBC7 - - VBC6...P VBC7...P - - VBC6...F VBC7...F
VBC6A (2) VBC7A (2) VBC6A...P (2) VBC7A...P (2) VBC6A...F (2) VBC7A...F (2)
3-pole low consumption contactors Coil consumption 1.4 ... 2.8 W Type BC6 BC7 (3) (3) BC6...P BC7...P (3) (3) BC6...F BC7...F - -
B6S (1) B7S (1)
4-pole contactors Coil consumption 3.5 W Type BC6 B7D (3) (3) (3) (3) (3) (3) (3) (3)
IEC Rated operational power AC-3 220-230-240 V kW 2.2 3 2.2 3 2.2 3 2.2 3 2.2 3 2.2 3
380-400 V kW 4 5.5 4 5.5 4 5.5 4 5.5 4 5.5 4 5.5
Rated operational current AC-1 400 V, θ ≤ 40 °C A 20 20 20 20 12 12 12 12 20 20 20 20
UL/CSA 3-phase motor rating 220-240 V AC hp 2 3 2 3 2 3 2 3 2 3 2 3
440-480 V AC hp 3 5 3 5 3 5 3 5 3 5 3 5
General use rating A 12 (300 V) 16 (600 V) 12 (300 V) 16 (600 V) 12 (300 V) 16 (600 V) 12 (300 V) 16 (600 V) 12 (300 V) 16 (600 V) 12 (300 V) 16 (600 V)
Main accessories
Auxiliary contact blocks Front mounting CAF6 - -
Side mounting CA6 - CA6-11K-P - CA6-11K-F -
Connection sets For reversing contactors BSM6-30 - -
Surge suppressors Varistor (AC/DC) RV-BC6 - -
Overload relays
Thermal overload relays Class 10 T16 - -
Thermal and phase failure protection, with single setup possible
Electronic overload relays Class 10E, 20E, 30E E16DU - -
With single setup possible
Manual motor starters
Thermal / magnetic protection Class 10 MS116, MS132 MS116, MS132 MS116, MS132
Magnetic only types MO132 MO132 MO132
Connecting link to manual motor starters BEA7/132 - -
—
K mini contactor relays

Screw terminals Soldering pins Flat pins

AC Control supply
4-pole contactor relays Coil consumption 3.5 VA Type K6 K6...P K6...F

DC Control supply
4-pole contactor relays Coil consumption 3.5 W Type KC6 KC6...P KC6...F
4-pole low consumption contactor relays Coil consumption 1.4 ... 2.8 W Type KC6, K6S (1) KC6...P KC6...F
IEC Rated operational current AC-15 220-230-240 V A 4 4 4
380-400 V A 3 3 3
Rated operational current DC-13 24 V A 2.5 2.5 2.5
Main accessories
Auxiliary contact blocks Front mounting CAF6 - -
Side mounting CA6-11K CA6-11K-P CA6-11K-F
(1) With integrated surge suppressor
(2) With safety blocking function
(3) Please visit: https://new.abb.com/low-voltage/products/motor-protection/3-pole-contactors-and-overload-relays-for-motor-starting/mini-contactors
