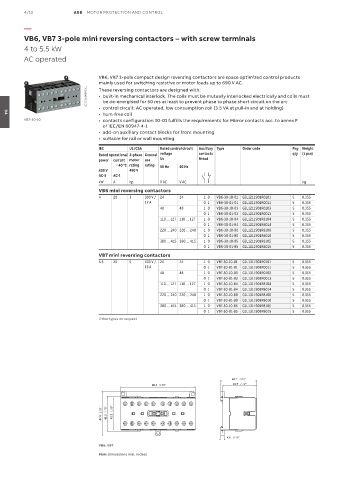

4/12 ABB MOTOR PROTECTION AND CONTROL

—
VB6, VB7 3-pole mini reversing contactors – with screw terminals

4 to 5.5 kW
AC operated

VB6, VB7 3-pole compact design reversing contactors are space optimized control products
mainly used for switching resistive or motor loads up to 690 V AC.
2CDC211006F0011 • built-in mechanical interlock. The coils must be mutually interlocked electrically and coils must
These reversing contactors are designed with:
be de-energised for 50 ms at least to prevent phase to phase short circuit on the arc
• control circuit: AC operated, low consumption coil (3.5 VA at pull-in and at holding)
• hum-free coil
04
VB7-30-10 • contacts configuration 30-01 fulfills the requirements for Mirror contacts acc. to annex F
of IEC/EN 60947-4-1
• add-on auxiliary contact blocks for front mounting
• suitable for rail or wall mounting
IEC UL/CSA Rated control circuit Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General voltage contacts qty (1 pce)
power current motor use Uc fitted
θ ≤ 40 °C rating rating 50 Hz 60 Hz
400 V 480 V
AC-3 AC-1
kW A hp V AC V AC kg
VB6 mini reversing contactors
4 20 3 300 V / 24 24 1 0 VB6-30-10-01 GJL1211901R0101 5 0.355
12 A 0 1 VB6-30-01-01 GJL1211901R0011 5 0.355
48 48 1 0 VB6-30-10-03 GJL1211901R0103 5 0.355
0 1 VB6-30-01-03 GJL1211901R0013 5 0.355
110 … 127 110 … 127 1 0 VB6-30-10-84 GJL1211901R8104 5 0.355
0 1 VB6-30-01-84 GJL1211901R8014 5 0.355
220 … 240 220 … 240 1 0 VB6-30-10-80 GJL1211901R8100 5 0.355
0 1 VB6-30-01-80 GJL1211901R8010 5 0.355
380 … 415 380 … 415 1 0 VB6-30-10-85 GJL1211901R8105 5 0.355
0 1 VB6-30-01-85 GJL1211901R8015 5 0.355
VB7 mini reversing contactors
5.5 20 5 600 V / 24 24 1 0 VB7-30-10-01 GJL1311901R0101 5 0.355
16 A 0 1 VB7-30-01-01 GJL1311901R0011 5 0.355
48 48 1 0 VB7-30-10-03 GJL1311901R0103 5 0.355
0 1 VB7-30-01-03 GJL1311901R0013 5 0.355
110 … 127 110 … 127 1 0 VB7-30-10-84 GJL1311901R8104 5 0.355
0 1 VB7-30-01-84 GJL1311901R8014 5 0.355
220 … 240 220 … 240 1 0 VB7-30-10-80 GJL1311901R8100 5 0.355
0 1 VB7-30-01-80 GJL1311901R8010 5 0.355
380 … 415 380 … 415 1 0 VB7-30-10-85 GJL1311901R8105 5 0.355
0 1 VB7-30-01-85 GJL1311901R8015 5 0.355
Other types on request

46.7 1.84"
96.2 3.79" 43.7 1.72"

57.5 2.26" 45.2 1.78" 42.2 1.66"

4.5 0.18"
VB6, VB7
Main dimensions mm, inches
