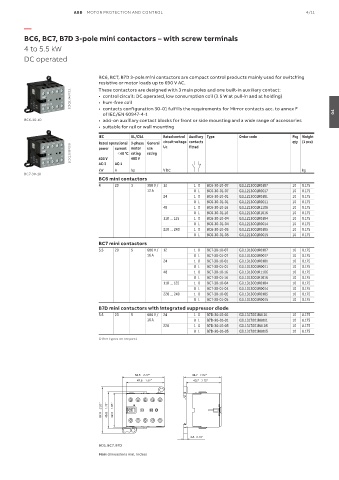

BC6, BC7, B7D 3-pole mini contactors – with screw terminals

4 to 5.5 kW
DC operated

BC6, BC7, B7D 3-pole mini contactors are compact control products mainly used for switching
resistive or motor loads up to 690 V AC.
These contactors are designed with 3 main poles and one built-in auxiliary contact:
2CDC211040F0011 • control circuit: DC operated, low consumption coil (3.5 W at pull-in and at holding)
• hum-free coil
• contacts configuration 30-01 fulfills the requirements for Mirror contacts acc. to annex F
of IEC/EN 60947-4-1 04
BC6-30-10 • add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
• suitable for rail or wall mounting
IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General circuit voltage contacts qty (1 pce)
2CDC211013F0011 400 V θ ≤ 40 °C rating rating
Uc
fitted
motor
use
current
power
480 V
AC-3
A
kW AC-1 hp V DC kg
BC7-30-10
BC6 mini contactors
4 20 3 300 V / 12 1 0 BC6-30-10-07 GJL1213001R0107 10 0.175
12 A 0 1 BC6-30-01-07 GJL1213001R0017 10 0.175
24 1 0 BC6-30-10-01 GJL1213001R0101 10 0.175
0 1 BC6-30-01-01 GJL1213001R0011 10 0.175
48 1 0 BC6-30-10-16 GJL1213001R1106 10 0.175
0 1 BC6-30-01-16 GJL1213001R1016 10 0.175
110 … 125 1 0 BC6-30-10-04 GJL1213001R0104 10 0.175
0 1 BC6-30-01-04 GJL1213001R0014 10 0.175
220 … 240 1 0 BC6-30-10-05 GJL1213001R0105 10 0.175
0 1 BC6-30-01-05 GJL1213001R0015 10 0.175
BC7 mini contactors
5.5 20 5 600 V / 12 1 0 BC7-30-10-07 GJL1313001R0107 10 0.175
16 A 0 1 BC7-30-01-07 GJL1313001R0017 10 0.175
24 1 0 BC7-30-10-01 GJL1313001R0101 10 0.175
0 1 BC7-30-01-01 GJL1313001R0011 10 0.175
48 1 0 BC7-30-10-16 GJL1313001R1106 10 0.175
0 1 BC7-30-01-16 GJL1313001R1016 10 0.175
110 … 125 1 0 BC7-30-10-04 GJL1313001R0104 10 0.175
0 1 BC7-30-01-04 GJL1313001R0014 10 0.175
220 … 240 1 0 BC7-30-10-05 GJL1313001R0105 10 0.175
0 1 BC7-30-01-05 GJL1313001R0015 10 0.175
B7D mini contactors with integrated suppressor diode
5.5 20 5 600 V / 24 1 0 B7D-30-10-01 GJL1317001R0101 10 0.175
16 A 0 1 B7D-30-01-01 GJL1317001R0011 10 0.175
220 1 0 B7D-30-10-05 GJL1317001R0105 10 0.175
0 1 B7D-30-01-05 GJL1317001R0015 10 0.175
Other types on request

52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2

4.5 0.18"
BC6, BC7, B7D
Main dimensions mm, inches
