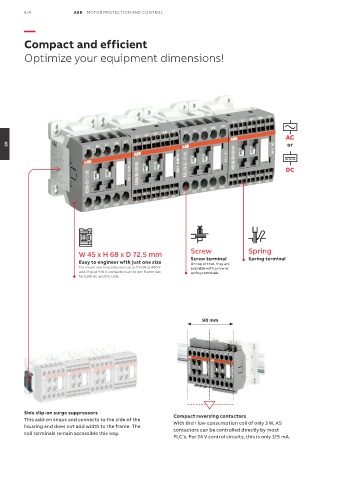

5/4 ABB MOTOR PROTECTION AND CONTROL

—

Compact and efficient

Optimize your equipment dimensions!

AC
or
05

DC

W 45 x H 68 x D 72.5 mm Screw Spring
Easy to engineer with just one size Screw terminal Spring terminal
On top of that, they are
For motor starting solutions up to 7.5 kW at 400 V available with screw or
and 3 hp at 440 V, contactors are in one frame size spring terminals.
for both AC and DC coils.

90 mm

Side clip-on surge suppressors Compact reversing contactors
This add-on snaps and connects to the side of the With their low consumption coil of only 3 W, AS
housing and does not add width to the frame. The contactors can be controlled directly by most
coil terminals remain accessible this way.
PLC's. For 24 V control circuits, this is only 125 mA.
