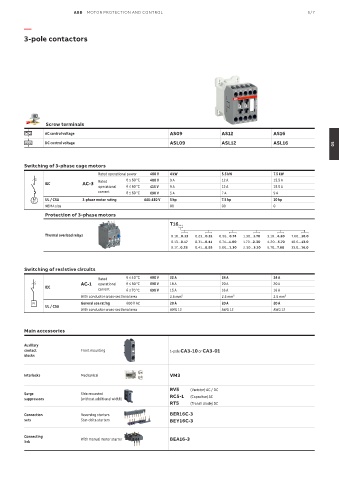

Page 657 - ABB_Motor _Protection_and_Control_catalogue_20221216

ABB MOTOR PROTECTION AND CONTROL 5/7

—

3-pole contactors

Screw terminals

AC control voltage AS09 AS12 AS16
DC control voltage ASL09 ASL12 ASL16 05

Switching of 3-phase cage motors
Rated operational power 400 V 4 kW 5.5 kW 7.5 kW
3 3 Rated θ ≤ 60 °C 400 V 9 A 12 A 15.5 A
IEC AC-3
operational θ ≤ 60 °C 415 V 9 A 12 A 15.5 A
current θ ≤ 60 °C 690 V 5 A 7 A 9 A
M UL / CSA 3-phase motor rating 440-480 V 5 hp 7.5 hp 10 hp
3
NEMA size 00 00 0
Protection of 3-phase motors
T16...

Thermal overload relays 0.10...0.13 0.23...0.31 0.55...0.74 1.30...1.70 3.10...4.20 7.60...10.0
0.13...0.17 0.31...0.41 0.74...1.00 1.70...2.30 4.20...5.70 10.0...13.0
0.17...0.23 0.41...0.55 1.00...1.30 2.30...3.10 5.70...7.60 13.0...16.0

Switching of resistive circuits

Rated θ ≤ 40 °C 690 V 22 A 24 A 24 A
3 3 AC-1 operational θ ≤ 60 °C 690 V 18 A 20 A 20 A
IEC current θ ≤ 70 °C 690 V 15 A 16 A 16 A
With conductor cross-sectional area 2.5 mm² 2.5 mm² 2.5 mm²
R R General use rating 600 V AC 20 A 20 A 20 A
UL / CSA
With conductor cross-sectional area AWG 12 AWG 12 AWG 12

Main accessories

Auxiliary
contact Front mounting 1-pole CA3-10 or CA3-01
blocks

Interlocks Mechanical VM3

RV5 (Varistor) AC / DC
Surge Side-mounted RC5-1
suppressors (without additional width) (Capacitor) AC
RT5 (Transil diode) DC
Connection Reversing starters BER16C-3
sets Star-delta starters BEY16C-3

Connecting With manual motor starter BEA16-3
link
