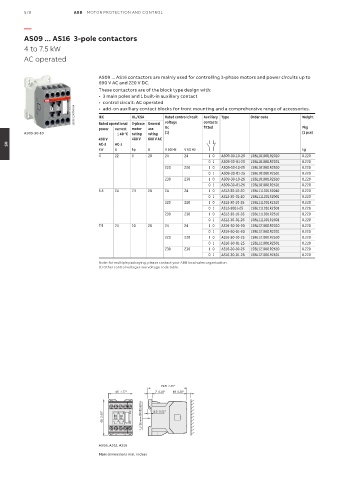

5/8 ABB MOTOR PROTECTION AND CONTROL

—
AS09 ... AS16 3-pole contactors

4 to 7.5 kW
AC operated

AS09 ... AS16 contactors are mainly used for controlling 3-phase motors and power circuits up to
690 V AC and 220 V DC.
These contactors are of the block type design with:
• 3 main poles and 1 built-in auxiliary contact
• control circuit: AC operated
1SBC101007F0014 IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
• add-on auxiliary contact blocks for front mounting and a comprehensive range of accessories.
voltage
contacts
Rated operational
use
motor
power current 3-phase General Uc fitted Pkg
AS09-30-10 θ ≤ 40 °C rating rating (1) (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
05
kW A hp A V 50 Hz V 60 Hz kg
4 22 5 20 24 24 1 0 AS09-30-10-20 1SBL101001R2010 0.220
0 1 AS09-30-01-20 1SBL101001R2001 0.220
220 220 1 0 AS09-30-10-25 1SBL101001R2510 0.220
0 1 AS09-30-01-25 1SBL101001R2501 0.220
230 230 1 0 AS09-30-10-26 1SBL101001R2610 0.220
0 1 AS09-30-01-26 1SBL101001R2601 0.220
5.5 24 7.5 20 24 24 1 0 AS12-30-10-20 1SBL111001R2010 0.220
0 1 AS12-30-01-20 1SBL111001R2001 0.220
220 220 1 0 AS12-30-10-25 1SBL111001R2510 0.220
0 1 AS12-3001-25 1SBL111001R2501 0.220
230 230 1 0 AS12-30-10-26 1SBL111001R2610 0.220
0 1 AS12-30-01-26 1SBL111001R2601 0.220
7.5 24 10 20 24 24 1 0 AS16-30-10-20 1SBL121001R2010 0.220
0 1 AS16-30-01-20 1SBL121001R2001 0.220
220 220 1 0 AS16-30-10-25 1SBL121001R2510 0.220
0 1 AS16-30-01-25 1SBL121001R2501 0.220
230 230 1 0 AS16-30-10-26 1SBL121001R2610 0.220
0 1 AS16-30-01-26 1SBL121001R2601 0.220
Note: for multiple packaging, please contact your ABB local sales organization.
(1) Other control voltages see voltage code table.

72.5 2.85"
35 1.38"
45 1.77" 7 0.28" 10 0.39" 2 x
M4 8-32 UNC ø 4.2 0.17"
35 mm EN/IEC 60715 5.5 0.22"
68 2.68" 60 2.36" 50 1.97"

AS09, AS12, AS16
Main dimensions mm, inches
