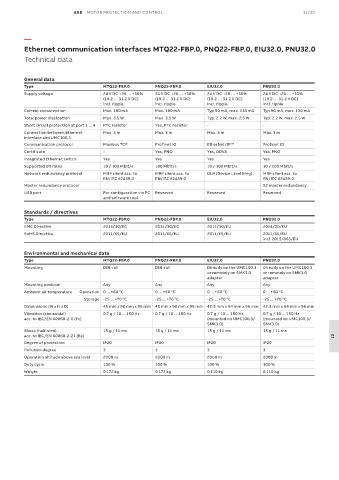

Page 885 - ABB_Motor _Protection_and_Control_catalogue_20221216

ABB MOTOR PROTECTION AND CONTROL 12/32

—
Ethernet communication interfaces MTQ22-FBP.0, PNQ22-FBP.0, EIU32.0, PNU32.0
Technical data

General data
Type MTQ22-FBP.0 PNQ22-FBP.0 EIU32.0 PNU32.0
Supply voltage 24 V DC -20 … +30% 24 V DC -20 … +30% 24 V DC -20 … +30% 24 V DC -20 … +30%
(19.2 … 31.2 V DC) (19.2 … 31.2 V DC) (19.2 … 31.2 V DC) (19.2 … 31.2 V DC)
incl. ripple incl. ripple incl. ripple incl. ripple
Current consumption Max. 180 mA Max. 180 mA Typ 90 mA, max. 130 mA Typ 90 mA, max. 130 mA
Total power dissipation Max. 3.5 W Max. 3.5 W Typ. 2.2 W, max. 2.5 W Typ. 2.2 W, max. 2.5 W
Short circuit protection at port 1 ... 4 PTC resistor Yes, PTC resistor - -
Connection between Ethernet Max. 3 m Max. 3 m Max. 3 m Max. 3 m
interface and UMC100.3
Communication protocol Modbus TCP Profinet IO EtherNet/IP TM Profinet IO
Certificate - Yes, PNO Yes, ODVA Yes, PNO
Integrated Ethernet switch Yes Yes Yes Yes
Supported bit rates 10 / 100 Mbit/s 100 Mbit/s 10 / 100 Mbit/s 10 / 100 Mbit/s
Network redundancy protocol MRP client acc. to MRP client acc. to DLR (Device Level Ring) MRP client acc. to
EN/IEC 62439-2 EN/IEC 62439-2 EN/IEC 62439-2
Master redundancy protocol S2 master redundancy
USB port For configuration via PC Reserved Reserved Reserved
and software tool

Standards / directives
Type MTQ22-FBP.0 PNQ22-FBP.0 EIU32.0 PNU32.0
EMC Directive 2014/30/EC 2014/30/EC 2014/30/EU 2014/30/EU
RoHS Directive 2011/65/EU 2011/65/EU 2011/65/EU 2011/65/EU
incl. 2015/863/EU

Environmental and mechanical data
Type MTQ22-FBP.0 PNQ22-FBP.0 EIU32.0 PNU32.0
Mounting DIN-rail DIN-rail Directly on the UMC100.3 Directly on the UMC100.3
or remotely on SMK3.0 or remotely on SMK3.0
adapter adapter
Mounting position Any Any Any Any
Ambient air temperature Operation 0 ... +60 °C 0 ... +60 °C 0 ... +60 °C 0 ... +60 °C
Storage -25 ... +70 °C -25 ... +70 °C -25 ... +70 °C -25 ... +70 °C
Dimensions (W x H x D) 45 mm x 90 mm x 96 mm 45 mm x 90 mm x 96 mm 42.5 mm x 64 mm x 96 mm 42.5 mm x 64 mm x 96 mm
Vibration (sinusoidal) 0.7 g / 10 ... 150 Hz 0.7 g / 10 ... 150 Hz 0.7 g / 10 ... 150 Hz 0.7 g / 10 ... 150 Hz
acc. to IEC/EN 60068-2-6 (Fc) (mounted on UMC100.3/ (mounted on UMC100.3/
SMK3.0) SMK3.0)
Shock (half-sine) 15 g / 11 ms 15 g / 11 ms 15 g / 11 ms 15 g / 11 ms
acc. to IEC/EN 60068-2-27 (Ea) 12
Degree of protection IP20 IP20 IP20 IP20
Pollution degree 3 3 3 3
Operation altitude above sea level 2000 m 2000 m 2000 m 2000 m
Duty cycle 100 % 100 % 100 % 100 %
Weight 0.172 kg 0.172 kg 0.110 kg 0.110 kg
