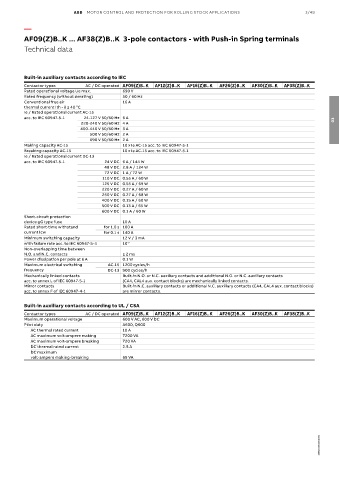

ABB MOTOR CONTROL AND PROTECTION FOR ROLLING STOCK APPLICATIONS 3/49

—

AF09(Z)B..K ... AF38(Z)B..K 3-pole contactors - with Push-in Spring terminals
Technical data

Built-in auxiliary contacts according to IEC
Contactor types AC / DC operated AF09(Z)B..K AF12(Z)B..K AF16(Z)B..K AF26(Z)B..K AF30(Z)B..K AF38(Z)B..K
Rated operational voltage Ue max. 690 V
Rated frequency (without derating) 50 / 60 Hz
Conventional free air 16 A
thermal current Ith - θ ≤ 40 °C
Ie / Rated operational current AC-15
acc. to IEC 60947-5-1 24-127 V 50/60 Hz 6 A 03
220-240 V 50/60 Hz 4 A
400-440 V 50/60 Hz 3 A
500 V 50/60 Hz 2 A
690 V 50/60 Hz 2 A
Making capacity AC-15 10 x Ie AC-15 acc. to IEC 60947-5-1
Breaking capacity AC-15 10 x Ie AC-15 acc. to IEC 60947-5-1
Ie / Rated operational current DC-13
acc. to IEC 60947-5-1 24 V DC 6 A / 144 W
48 V DC 2.8 A / 134 W
72 V DC 1 A / 72 W
110 V DC 0.55 A / 60 W
125 V DC 0.55 A / 69 W
220 V DC 0.27 A / 60 W
250 V DC 0.27 A / 68 W
400 V DC 0.15 A / 60 W
500 V DC 0.13 A / 65 W
600 V DC 0.1 A / 60 W
Short-circuit protection
device gG type fuse 10 A
Rated short-time withstand for 1.0 s 100 A
current Icw for 0.1 s 140 A
Minimum switching capacity 12 V / 3 mA
with failure rate acc. to IEC 60947-5-4 10 -7
Non-overlapping time between
N.O. and N.C. contacts ≥ 2 ms
Power dissipation per pole at 6 A 0.1 W
Maximum electrical switching AC-15 1200 cycles/h
frequency DC-13 900 cycles/h
Mechanically linked contacts Built-in N.O. or N.C. auxiliary contacts and additional N.O. or N.C. auxiliary contacts
acc. to annex L of IEC 60947-5-1 (CA4, CAL4 aux. contact blocks) are mechanically linked contacts.
Mirror contacts Built-in N.C. auxiliary contacts or additional N.C. auxiliary contacts (CA4, CAL4 aux. contact blocks)
acc. to annex F of IEC 60947-4-1 are mirror contacts.

Built-in auxiliary contacts according to UL / CSA
Contactor types AC / DC operated AF09(Z)B..K AF12(Z)B..K AF16(Z)B..K AF26(Z)B..K AF30(Z)B..K AF38(Z)B..K
Maximum operational voltage 600 V AC, 600 V DC
Pilot duty A600, Q600
AC thermal rated current 10 A
AC maximum volt-ampere making 7200 VA
AC maximum volt-ampere breaking 720 VA
DC thermal rated current 2.5 A
DC maximum
volt-ampere making-breaking 69 VA
